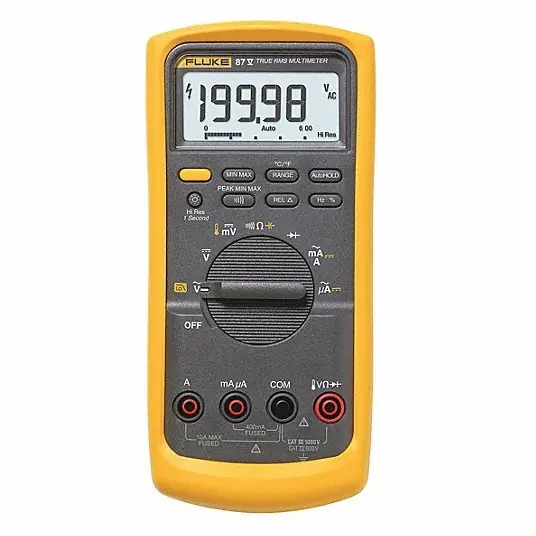

FLUKE-87-5/CWG Digital Multimeter, 1,000 Max. AC Volts, 1,000 Max. DC Volts, 10 Max. AC Amps, 10 Max. DC Amps

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-(0.7 Percent + 2), Basic DC Voltage Accuracy +/-0.05 Percent + 1 Digit, Data Hold Yes, Basic DC Current Accuracy +/-(0.2 Percent + 2), Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000/19,999, Special Features Adjustable Speed Motor Drive Test Function, Maximum AC Current Measurement 10 A

Multimeter Style	Full Size – General Features
Item	Digital Multimeter
Instrument Counts	6000/19,999
Basic DC Accuracy	+/-0.05% of Reading + 1 Digit
Instrument Safety Rating	CAT III 1000V, CAT IV 600V
Max. AC Volts	1,000
Max. DC Volts	1,000
Max. AC Amps	10
Max. DC Amps	10
Audible Continuity	Yes
Max. Ohms	50 megohm
Battery Type	9V Alkaline
Auto Power Off	Yes
AC Response	TRMS
Min./Max. Memory	yes
Capacitance Range	1 nF to 9999 uF
Temp. Range	-328 Degrees to 1994 Degrees F
Calibration Certificate Included	Yes
Instrument Frequency Counter Range	0.5 Hz to 200 kHz
Display	Backlit LCD
NIST Certification By	Techni-Tool
Peak Hold	Yes
Includes	9V Battery (Installed), Printed QSG, Temp Probe, Test Leads,Alligator Clips
Special Features	Adjustable Speed Motor Drive Test Function
Series	FLUKE (R) Fluke-87-V
Data Logging	Yes
Diode Test	Yes
Auto Ranging	Yes
Duty Cycle	Yes
Standards	ANSI/ISA S82.01, CE, EN61010-1, SA, UL
Bar Graph	Yes
Data Hold	Yes
Intrinsically Safe	No
Multimeter Features_COMBINED	Data Logging
Data Logging – New_BROAD	Data Logging
Resistance Measurement Accuracy	+/-0.2%
Minimum Temperature Measurement	-328 Degrees F
MERCH HOLD ACCURACY	+/-0.05% + 1 Digit +/-(0.7% + 2) +/-(0.2% + 2) +/-(1.0% + 2) +/-(1% + 2) +/-(0.005% + 1) +/-2.00% +/-0.2%
Battery Voltage	9V
Thermal Imaging	No
Maximum Resistance Measurement	50 megaohm
Battery Chemistry	Alkaline
Maximum DC Voltage Measurement	1,000 V
MERCH HOLD – DMM Features	No No No No No No No
Multimeter Features	Data Logging
Maximum Temperature Measurement	1,994 Degrees F
Safety Rating_SUBHEAD	CAT III 1000V; CAT IV 600V
AC Response Calculation	TRMS
AC Current Measurement Resolution	Not Applicable
Minimum Capacitance Measurement	1 nF
Fuse Access	Yes
AC Voltage Measurement Resolution	Not Applicable
Removable Screen	No
DC Current Measurement Resolution	Not Applicable
Current Leakage Testing	No
Intrinsically Safe – ADDITIONAL FEATURES	Data Logging
Frequency Measurement Resolution	0.5 Hz
DC Voltage Measurement Resolution	Not Applicable
Basic AC Voltage Accuracy	+/-(0.7% + 2)
Maximum AC Voltage Measurement	1,000 V
Batteries Included	Yes
Software Included	No
Maximum AC Current Measurement	10 A
Bluetooth Compatible_ADDITIONAL FEATURES	Data Logging
Minimum/Maximum Memory	Yes
Minimum DC Voltage Measurement	0 V
Dustproof	No
Temperature Measurement Accuracy	+/-2.00%
FEATURES HOLD_MERCH	Backlit LCD Yes Yes
Display Type	Backlit LCD
Basic DC Current Accuracy	+/-(0.2% + 2)
Minimum AC Voltage Measurement	0 V
Resistance Measurement Resolution	Not Applicable
NIST Certification By Manufacturer	Techni-Tool
Minimum DC Current Measurement	0 mA
Maximum Frequency Measurement	200 kHz
Minimum AC Current Measurement	0 mA
Multimeter Features_Filter_BACKGROUND	Data Logging FLUKE-87-5/CWG
Capacitance Measurement Accuracy	+/-(1% + 2)
Bluetooth Compatible	No
Frequency Measurement Accuracy	+/-(0.005% + 1)
Style	Full Size
Bar Graph Included	Yes
Maximum DC Current Measurement	10 A
Maximum Storage Temperature	140 Degrees F
Weight	624 g
Basic AC Current Accuracy	+/-(1.0% + 2)
Maximum Capacitance Measurement	9,999 uF
Parameters Measured	AC Current, AC Voltage, Capacitance, Conductance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)
Safety Rating_BACKGROUND	FLUKE-87-5/CWG CAT IV 600V
Battery Access	Yes
Basic DC Voltage Accuracy	+/-0.05% + 1 Digit
Min-Max-Avg Button Included	Yes
Minimum Frequency Measurement	0.5 Hz
Maximum Operating Temperature	131 Degrees F
Waterproof	No
Minimum Storage Temperature	-40 Degrees F
Thermal Imaging_ADDITIONAL FEATURES	Data Logging
Computer Interface Connection Type	None
Minimum Operating Temperature	-4 Degrees F
Dustproof Waterproof_ADDITIONAL FEATURES	Data Logging
Capacitance Measurement Resolution	1 nF
Package Quantity	1
