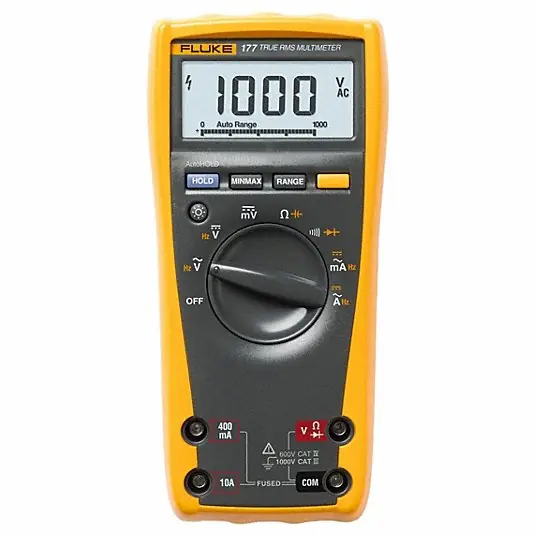

Fluke-177 Digital Multimeter TRMS, CAT III 1000V/CAT IV 600V, 1,000 V Max AC Volt Measurement

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-(1.0 Percent + 3), Basic DC Voltage Accuracy +/-0.09 Percent + 2 Digits, Data Hold Yes, Basic DC Current Accuracy +/-(1.0 Percent + 3), Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000, Special Features Closed Case Calibration Through Front Panel, Ergonomic Case with Integrated Protective Holster

Display Type	Backlit LCD
Data Hold	Yes
Instrument Counts	6,000
Includes	(1 Pair) Test Leads, 9V Battery (Installed), Quick Reference Guide
Standards	CSA, EN61010-1, TUV, UL, VDE
Auto Power Off	Yes
Data Logging	Yes
Audible Continuity	Yes
Diode Test	Yes
Instrument Frequency Counter Range	0.01 Hz to 100 kHz
Auto Ranging	Yes
Temp. Range	14 Degrees to 122 Degrees F
Display	Backlit LCD
Max. AC Amps	10
AC Response	TRMS
Basic DC Accuracy	+/-0.09% of Reading +2 Digits
Series	FLUKE (R) Fluke-177
Max. DC Amps	10
Instrument Safety Rating	CAT III 1000V, CAT IV 600V
Multimeter Style	Full Size – General Features
Calibration Certificate Included	No
Max. Ohms	50 megohm
Capacitance Range	1 nF to 10,000 uF
Intrinsically Safe	No
Battery Access	Yes
Minimum Capacitance Measurement	1 nF
Maximum Operating Temperature	122 Degrees F
Maximum Frequency Measurement	100 kHz
Frequency Measurement Resolution	0.01 Hz
Fuse Access	Yes
Minimum DC Current Measurement	0 A
Maximum AC Voltage Measurement	1,000 V
Basic AC Current Accuracy	+/-(1.5% + 3)
Capacitance Measurement Accuracy	+/-(1.2% + 2)
Basic DC Voltage Accuracy	+/-0.09% + 2 Digits
Maximum Resistance Measurement	50 megaohm
Dustproof	No
Capacitance Measurement Resolution	1 nF
Computer Interface Connection Type	None
Minimum Operating Temperature	14 Degrees F
Maximum DC Current Measurement	10 A
Parameters Measured	AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
Minimum Storage Temperature	-22 Degrees F
Maximum Capacitance Measurement	10,000 uF
Maximum AC Current Measurement	10 A
Resistance Measurement Accuracy	+/-0.9%
Frequency Measurement Accuracy	+/-(0.1% + 1)
Minimum AC Voltage Measurement	0 V
Basic DC Current Accuracy	+/-(1.0% + 3)
Software Included	No
Bar Graph Included	Yes
Minimum AC Current Measurement	0 A
Maximum DC Voltage Measurement	1,000 V
Minimum DC Voltage Measurement	0 V
Battery Chemistry	Alkaline
Minimum Temperature Measurement	14 Degrees F
Minimum Frequency Measurement	0.01 Hz
Waterproof	No
Battery Voltage	9V
Basic AC Voltage Accuracy	+/-(1.0% + 3)
Thermal Imaging	No
Batteries Included	Yes
Maximum Temperature Measurement	122 Degrees F
Maximum Storage Temperature	140 Degrees F
Current Leakage Testing	No
Min-Max-Avg Button Included	Yes
Minimum/Maximum Memory	Yes
Weight	420 g
Removable Screen	No
Bluetooth Compatible	No
AC Response Calculation	TRMS
