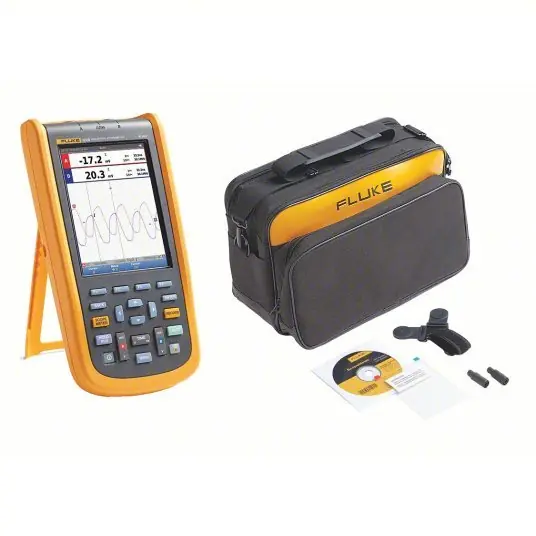

FLUKE-124BS/WWG Compact Handheld Oscilloscope Compact Digital Oscilloscopes, Fully Isolated, Repeat, True RMS

Compact Handheld Oscilloscope, Bandwidth (MHz) 40 MHz, 2 Channels, 5.7 in Color TFT Display, True RMS Yes, Sampling Rate 400 KS/s, 10 nsec/div to 60 sec/div Max./Min. Sweep Speed, 20 Waveform / Measurement Stored, Max. Record Length 512 Min/Max Points Per Input, FFT Analysis No, Cursors and Zoom Yes, Real Time Clock Yes, Repeat Triggering Mode, Input Sensitivity 5 mV/div to 200 V/div, No Persistence, Glitch Capture Yes, Capacitance Measurements Yes, USB, Wireless Interface

Channels	2
Display	5.7 in Color TFT
Max./Min. Sweep Speed	10 nsec/div to 60 sec/div
Battery Life	7 hr
Includes	AC Power Adapter, Banana-to-BNC Adapters (Black), Set Hook of Clips (Red, Blue), Shielded Test Leads with Black Ground Leads Pair, Switch Mode Power Supply, Pair of Black Test Lead, USB Angled Adapter, Wi-Fi USB Adapter
Persistence	No
Glitch Capture	Yes
Cursors & Zoom	Yes
FFT Analysis	No
Interface	USB, Wireless
Battery Type	Li-Ion
Input Sensitivity	5 mV/div to 200 V/div
Features	Connect Systems of Software Enabled, Connect-And-View Auto Trigger, Meter and Waveform Recording with Event Detect, Technology Automatically Sets Numeric Readings Based on Wave Shape
Battery Pack Recharge Time (Hr.)	4 hr
Triggering Mode	Repeat
Safety Rating	Cat IV 600V
True RMS	Yes
Capacitance Measurements	Yes
Real Time Clock	Yes
Sampling Rate	400 KS/s
Waveform / Measurement Stored	20
Green Environmental Attribute	Product is Rechargeable
Cursors and Zoom	Yes
Capacitance Measurement – Maximum	500 uF
Capacitance Measurement – Minimum	50 nF
Digital Display Screen Type	TFT LCD
Battery Chemistry	Lithium Ion
Body Style	Handheld
Input Sensitivity – Maximum	200 V/div
Includes Batteries	Batteries Included
AC Voltage Measurement – Maximum	1,100 V AC
Power Source	AC Adapter, Battery
IP Rating	IP51
Calibration Certificate Type	Not Certified
Sound Level Measurement – Maximum	-3 dB
Channel Source Isolation	Fully Isolated
AC Magnitude Calculation	True RMS
Battery Run Time	7 hr
DC Current Measurement – Maximum	0.5 mA
CAT Safety Rating	CAT III 750V, CAT IV 600V
DC Voltage Measurement – Minimum	500 mV DC
DC Current Measurement – Minimum	500 nA
DC Voltage Measurement – Maximum	750 V DC
Number of Channels	2
Input Sensitivity – Minimum	5 mV/div
AC Voltage Measurement – Minimum	500 mV AC
