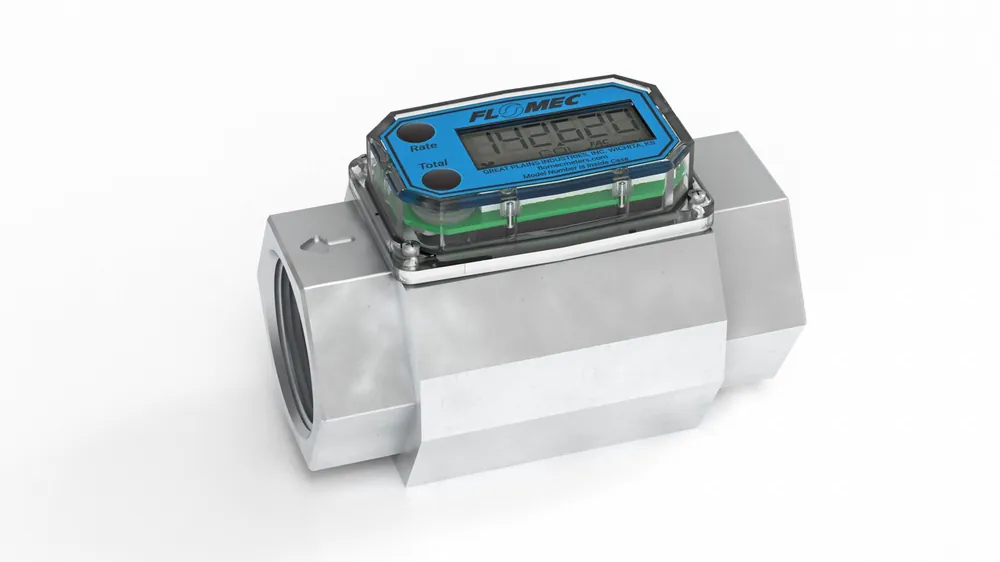

Flomec G2A15NQ9GMB Electronic Flowmeter, Fuel Meter, Digital, 1/2 in FNPT, 100 gpm Max, Aluminum, Turbine, 1-1/2 in Pipe

Flomec G2A15NQ9GMB Electronic Flowmeter, Fuel Meter, Digital, 1/2 in FNPT, 100 gpm Max, Aluminum, Turbine, 1-1/2 in Pipe

Original price was: $1,359.72.Current price is: $271.94.

SKU: SK0020949-US20260630-101428 Category: Tag:

Electronic Flowmeter, Product Type Electronic Meter, Flowmeter Type Turbine, Accuracy +/-0.75 Percent (With Computer), +/-1 Percent (Body Only), Connection Size 1/2 in, Connection Type FNPT, Compatible Flow Material Diesel, Fuels, Petroleum Fluids, Media Temperature – Maximum 250 Degrees F, Media Temperature – Minimum -40 Degrees F, Viscosity – Maximum 20 cps, Housing Material Aluminum, Rotor Material PVDF, Shaft Material Tungsten Carbide

For Pipe Size 1 1/2 in
Connection Size 1/2 in
Width (In.) 2 7/10 in
Length (In.) 5 3/10 in
Height (In.) 3 13/25 in
Overall Width 2.1 in
Overall Length 5.3 in
Manufacturer Warranty Length 1 yr
Overall Height 0.9 in
Type Turbine
Housing Material Aluminum
Flow Material Fuels, Solvents
Connection Type FNPT
Max. Pressure 300 psi
Max. Viscosity 20 cps
Wetted Materials 316 Aluminum, Alumina Ceramic, PVDF, Stainless Steel, Tungsten Carbide
Frequency Range (Hz) 36 to 360
Flow Range 10 to 100 gpm
Fluid Temp. Range 14 Degrees to 140 Degrees F
Flow Range (GPM) 10 to 100
Power Requirement 2-AAA Alkaline Batteries
Shaft Material Tungsten Carbide
Flow Range @ GPH 600 to 6000
Output Type 4-20 mA
Sensor Type Turbine
Standards ATEX, CE Certified, FM Approved, IECE
Flow Range (LPM) 38 to 380
Accuracy (%) +/-0.75
Rotor Type PVDF Turbine
Display Type Digital
Display Units gal
Rotor Material PVDF
Compatible Flow Material Diesel, Fuels, Petroleum Fluids
Frequency – Minimum 36 Hz
Frequency – Maximum 360 Hz
Operating Pressure – Maximum 300 psi
Wetted Material 316 Stainless Steel, Alumina Ceramic, Aluminum, PVDF, Tungsten Carbide
Flow Rate – Minimum 10 gpm
Includes Totalizer Yes
Flow Rate – Maximum 100 gpm
Product Type Electronic Meter
Media Temperature – Maximum 250 Degrees F
Media Temperature – Minimum -40 Degrees F
Accuracy +/-0.75% (With Computer), +/-1% (Body Only)
Unit Of Measure Gallons, Liters
Flowmeter Type Turbine
Mounting Orientation Universal
Viscosity – Maximum 20 cps
Country of Origin United States
