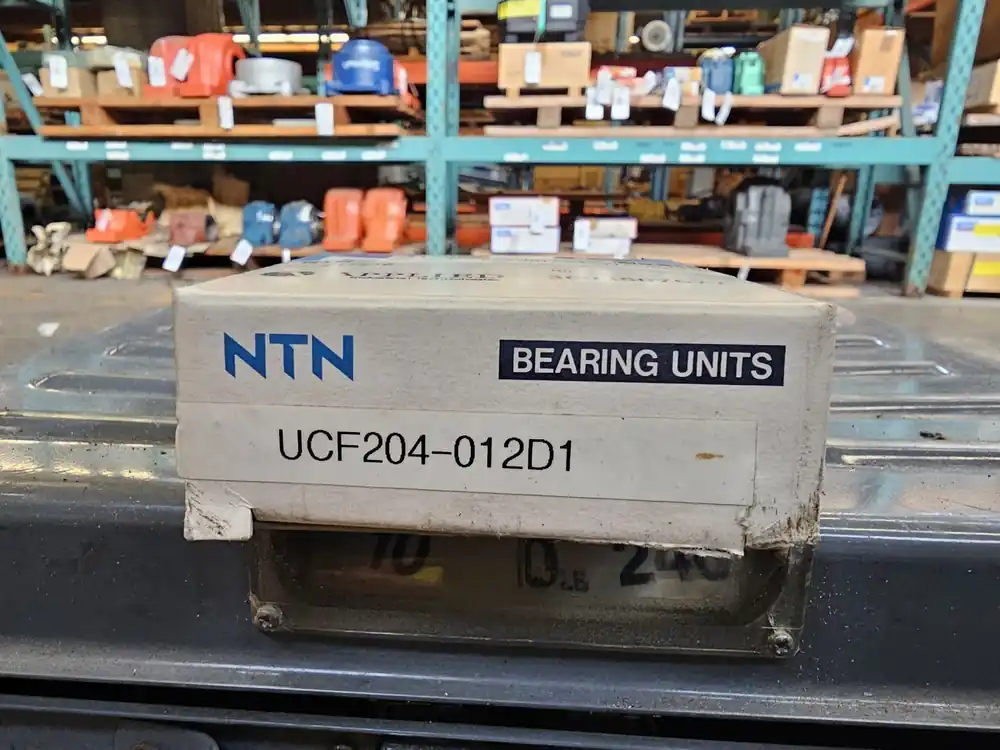

Flange-Mount Ball Bearing Unit – 3/4 in Bore, 4-Bolt Flange Mount, Set Screw Locking, Cast Iron Housing Material, Non-Expansion Bearing (Fixed), Intermediate Duty, Contact Seal Seal
Specifications
Model
UCF204-012D1
Condition
Surplus New
Other Specifications
Overview:
Product Type: Flange-Mount Ball Bearing Units
Bore Diameter: 3/4 in
Housing Material: Cast Iron
Duty Type: Intermediate Duty
Bolt Center To Center Length: 2.5156 in
Overall Length: 3.3750 in
Bolt Circle Diameter: 2.5156 in
Bearing Number: UC204-012D1
Locking Device: Set Screw
Expansion Type: Non-Expansion Bearing (Fixed)
Seal Type: Contact Seal
Overall Length Diameter: 3.3750 in
Seal Material: Nitrile Rubber
Housing Width: 1.0000 in
Lubrication Type: Relubricatable
Overall Width: 1.3125 in
Bore Type: Straight
Radial Dynamic Load Capacity: 2890 lbf
Radial Static Load Capacity: 1500 lbf
End Type: Open
Length Through Bore: 1-5/16 in
Operating Temperature Range: -40 to 250 F
Finish Coating: Uncoated
Series: UCF2
Standards Met: AFBMA, ISO
Replacement Bearing: UC204-012D1
Housing ID: F204D1
Housing Construction: Solid
Type Of Bearing: Ball
Mounting Type: 4-Bolt Flange
