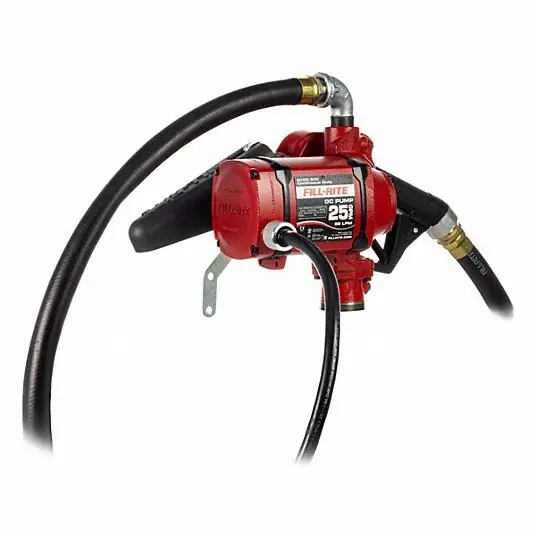

Fill-Rite NX25-DDCNB-AA Fuel Transfer Pump with Hose & Nozzle, Bung, 25 gpm Max. Flow Rate, 24V DC, Auto

Fuel Transfer Pump, Max. Head Pressure 25 psi, Max. Outlet Pressure 21 psi, For Use With Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Mineral Spirits, Rated Voltage 24V DC, Hose Length 18 ft, Cord Length 20 ft, Nozzle Operation Automatic, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Biodiesel, Diesel, Gasohol, Gasoline, Kerosene, Mineral Spirits

Voltage	12 to 24V DC
Application	Agriculture; Barrel Mounting; Construction; Stationary Installations; Tank
HP	1/3
Housing Material	Cast Iron
GPM	25 gpm
Seal Material	Buna-N
RPM	3500/400
Pump Design	Rotary Vane
Self-Priming	Yes
Seal Type	Mechanical
Max. Viscosity	200 SUS
Item	Fuel Transfer Pump
Duty Cycle	Continuous
Standards	ATEX , CE, cUL, IECEX
Features	Automatic Power Down, High Flow Rates, Improved Suction Lift, Intelligent Tones, Light Weight, Low Amp Draw, Magnetic Replaceable Switch, Removable Power Cord
Nozzle Material	Buna-N
Bearing Type	Ball
Pressure Range	0 to 21 psi
Nozzle Type	Automatic
Compatible Fluids	Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Mineral Spirits
Metered	No
Includes	Cable, Discharge Hose, Nozzle
For Use With	Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Mineral Spirits
Bypass Valve	Yes
Transfer Pump Application	Agriculture, Barrel Mounting, Construction, Stationary Installations, Tank
Agency Compliance	ATEX, CE, cULus, IECEx
Housing Material – Pumps	Cast Iron
Max. Head – Pumps	48 ft
Motor RPM	8.75 RPM
Max. Flow Rate	25 gpm
Nozzle Fluid Compatibility	Diesel
Compatible Chemicals	Biodiesel, Diesel, Gasohol, Gasoline, Kerosene, Mineral Spirits
Rated Voltage	24V DC
Max. Head Pressure	25 psi
Mount Type	Bung
Motor HP	1/3 hp
Full Load Amps	30.0 A
Nozzle Operation	Automatic
Includes Discharge Hose	Yes
Max. Outlet Pressure	21 psi
Includes Nozzle	Yes
For Media Type	Biodiesel, Diesel, Gasohol, Gasoline, Kerosene, Mineral Spirits
