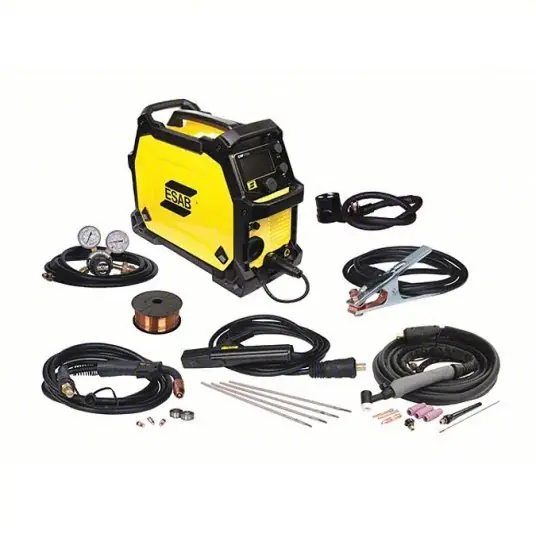

ESAB 0558102240 Multiprocess Welder Rebel EMP 215ic, DC, MIG/Stick/TIG Pack

Multiprocess Welder, Series Rebel EMP 215ic, Input Voltage 120V AC, 208V AC, 230V AC, Phase Single-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 240 A, TIG Welding Maximum Output Current 240 A, MIG Welding Maximum Output Current 240 A, For Wire Type Aluminum, Flux-Cored, Solid

Series	Rebel EMP 215ic
Phase	Single-Phase
Input Voltage	120V AC, 208V AC, 230V AC
Function	DC TIG, Flux-Cored, MIG, Stick
Rated Output	205A @ 25% Duty Cycle
OCV	90
Includes	17V-Style TIG Torch, Contact Tips, Drive Rolls, Electrode Holder, Sample Spool of 0.03 in Wire, Stick Electrodes, Tweco Fusion 180 A MIG Gun, Tweco Ground Clamp with Leads, Victor Argon Flowgauge Regulator & 12.5 ft Hose
Application	Auto Body Shop, Construction, Equipment, Farm/Ranch, HVAC, Light Fabrication, Metalworking, MRO
Hz	50/60
Standards	CSA Certified
Features	LCD Display
Welding Processes	Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Range	5 A to 240 A
Input Frequency	50/60 Hz
TIG Welding Output @ Duty Cycle	130 A @ 15.2 V, 40%, 180 A @ 17.2 V, 30%
Stick Welding Minimum Output Current	5 A
Stick Welding Output @ Duty Cycle	180 A @ 27.2 V, 25%, 90 A @ 23.6 V, 40%
Stick Welding Maximum Output Current	240 A
Weight	40 lb
Plug Type	6-50P
Welding Mode	CC/CV
TIG Arc Start Feature	Lift Arc Start
TIG Welding Minimum Output Current	5 A
Power Cord Included	Yes
Effective Input Current	150 A @ 120V AC (Single-Phase), 240 A @ 230V AC (Single-Phase)
MIG Welding Maximum Output Current	240 A
Minimum Wire Feed Speed	59 in/min
For Material Type	Aluminum, Mild Steel, Stainless Steel
Remote Connection Type	8-Pin (ESAB)
Color	Yellow
For Wire Type	Aluminum, Flux-Cored, Solid
Max. Input Current	150 A @ 120 V, 240 A @ 230 V
Polarity	DC
MIG Welding Output @ Duty Cycle	130 A @ 20.5 V, 20%, 205 A @ 24.3 V, 25%
MIG Welding Minimum Output Current	5 A
Open Circuit Voltage	68 V DC
TIG Welding Maximum Output Current	240 A
Maximum Wire Feed Speed	476 in/min
Model	0558102240
