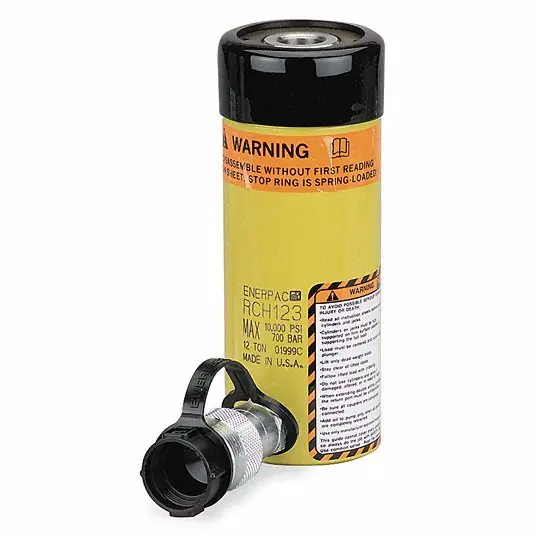

General Purpose Hydraulic Ram, Single Acting, Hollow Plunger, Steel, Nominal Capacity 12 ton, Max. Push Capacity 12 ton, Stroke Length 3 in, Nominal Stroke Length 3 in, Effective Push Area 2.76 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 8.29 cu in, Retracted Height 7.25 in, Extended Height 11.08 in, Outside Dia. 2.75 in, Plunger Dia. 1.38 in, Plunger Thread Size 3/4 In.-16, Collar Thread Size 2-3/4 In.-16, Base Bolt Circle Dia. 2 in, Base Mounting Thread Size 5/16-18
Effective Area
2.76 sq. in.
Oil Capacity
8.29 cu. in.
UPC
662005302598
Cylinder Type
Hollow Plunger
Handle
No
Max. Pressure
10,000 psi
Weight Capacity
12 tons
Single Acting/Double Acting
Single Acting
Body Material
Steel
Includes
Coupler, Dust Cap
Series
RCH
Effective Push Area
2.76 sq in
Nominal Capacity
12 ton
Max. Push Capacity
12 ton
Oil Capacity Push
8.29 cu in
Finish
Paint
