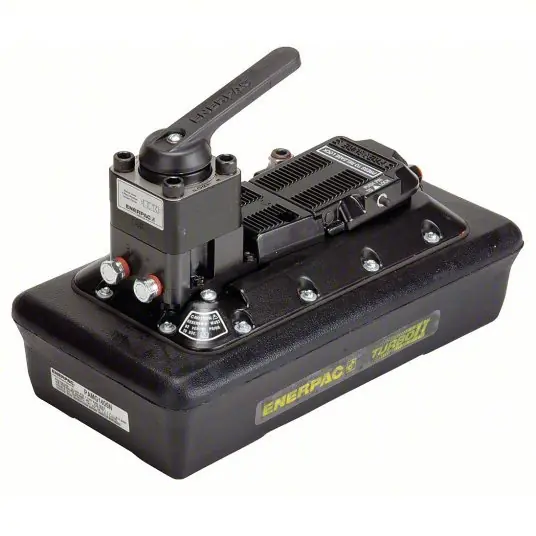

Enerpac PAMG1405N Hydraulic Pump 10,000 psi Max. Op Pressure, 230 cu in Reservoir Capacity, Pendant

Hydraulic Pump, Reservoir Capacity 230 cu in, Air Intake Pressure – Maximum 125 psi, Air Intake Connection Size 1/4 in, Operating Pressure – Maximum 10,000 psi, Displacement @ 5000 psi 24 cu in/min, Displacement @ 10,000 PSI 10 cu in/min, Sound Level – Maximum 76 dBA, Control Valve Type 3-Position, 4-Way, Tandem Center, Actuation Type Pendant, Air Consumption – Maximum 12 scfm, Air Intake Connection Type FNPT, Control Valve Function Advance, Hold, Retract

Oil Capacity (Cu.-In.)	230 cu in
Reservoir Capacity (Gal.)	1 gal
Oil Displacement @ 0 PSI	60.00 cu in/min
Oil Displacement @ 10,000 PSI	10 cu in/min
Operating Air PSI	125
Oil Displacement @ 5000 PSI	24 cu in/min
Air Consumption (SCFM)	12
Actuation Type	Pendant
Built-In	Pressure Relief Valve
Usable Oil Capacity Horizontal Mount	230 cu in
Type	Air Powered
Capacity (PSI)	10,000
Usable Oil Capacity Vertical Mount	230 cu in
Air Inlet NPT (In.)	1/4-18
Fluid Port NPT (In.)	3/8-18
Includes	Treadle
dBA	76
Features	Ergonomic Design, Pedal Lock Function, Pressure Relief Valve
Treadle	4-way, 3-position, Tandem Center
Oil Displacement @ 5000 psi	24 cu in/min
Air Intake Connection Type	FNPT
Operating Pressure – Maximum	10,000 psi
Sound Level – Maximum	76 dBA
Displacement @ 5000 psi	24 cu in/min
Reservoir Capacity	230 cu in
Control Valve Type	3-Position, 4-Way, Tandem Center
Air Intake Pressure – Maximum	125 psi
Control Valve Function	Advance, Hold, Retract
Flow Rate – Maximum	10 cu in/min
Air Consumption – Maximum	12 scfm
