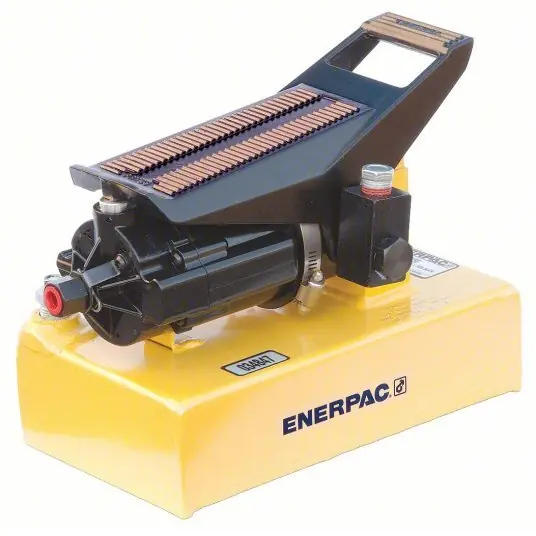

Enerpac PA1150 Hydraulic Pump 10,000 psi Max. Op Pressure, 80 cu in Reservoir Capacity, Foot/Hand

Hydraulic Pump, Reservoir Capacity 80 cu in, Air Intake Pressure – Maximum 120 psi, Air Intake Connection Size 1/4 in, Operating Pressure – Maximum 10,000 psi, Displacement @ 10,000 PSI 8 cu in/min, Sound Level – Maximum 85 dBA, Actuation Type Foot, Hand, Air Consumption – Maximum 9 scfm, Air Intake Connection Type FNPT, Control Valve Function Advance, Hold, Retract, Features Ergonomic Design, Flow Rate – Maximum 8 cu in/min, Media Intake Connection Size 3/8 in, Overall Height 8.3 in

Oil Capacity (Cu.-In.)	80 cu in
Reservoir Capacity (Gal.)	0.15 gal
Oil Displacement @ 0 PSI	40.00 cu in/min
Oil Displacement @ 10,000 PSI	8 cu in/min
Operating Air PSI	60 to 120
Air Consumption (SCFM)	9
Actuation Type	Foot, Hand
Fluid Port NPT (In.)	3/8
Usable Oil Capacity Vertical Mount	80 cu in
Includes	Swivel Coupling
Air Inlet NPT (In.)	1/4 Female
Capacity (PSI)	10,000
Treadle	Three Position
Type	Air Powered
dBA	85
Usable Oil Capacity Horizontal Mount	80 cu in
Features	Ergonomic Design
Treadle Design	Three Position
Air Intake Pressure – Maximum	120 psi
Air Consumption – Maximum	9 scfm
Control Valve Function	Advance, Hold, Retract
Air Intake Connection Type	FNPT
Flow Rate – Maximum	8 cu in/min
Sound Level – Maximum	85 dBA
Reservoir Capacity	80 cu in
Operating Pressure – Maximum	10,000 psi
