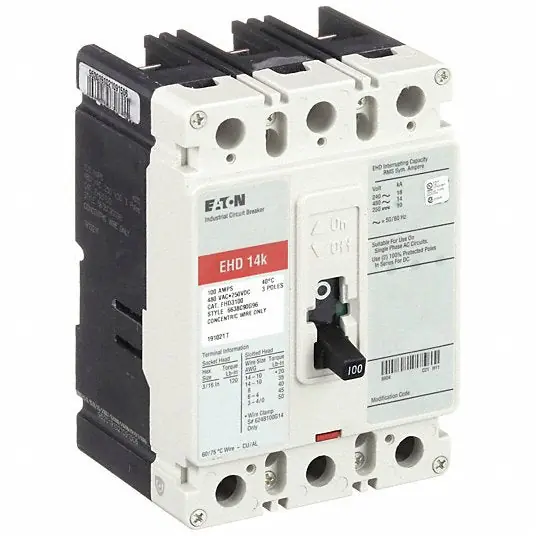

Eaton EHD3100 Molded Case Circuit Breaker 100 A Amps, 18kA at 240V AC, Fixed, ABC, Load Side Lug, Std, EHD

Molded Case Circuit Breaker, 100 A Amps, AC Voltage Rating 480V AC, Max. AIR Rating 18kA at 240V AC, For Use With Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse, Series EHD, High Amp Trip Setting 100 A, Low Amp Trip Setting 15 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 250V DC, Terminal Connection Load Side Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC

Series	EHD
Amps	100A
Number of Poles	3
AC Voltage Rating	480V AC
Circuit Breaker Type	Standard
Phase	3
Circuit Breaker Actuator	Toggle
Circuit Breaker Mounting Style	Free Standing
Max. AIR Rating	18kA at 240V AC
Trip Type	Thermal Magnetic
Instantaneous Trip	Fixed
Terminal Connection	Lugs
Phase Connection	ABC
DC Voltage Rating	250V DC
High Amp Trip Setting	100 A
Standards	CSA Certified, IEC Rated, UL Listed
For Use With	Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
Low Amp Trip Setting	15 A
Interrupt Rating	14 kA at 480V AC
Frame Type	Complete Breaker
Min. Operating Temp.	-4°F
Max. Operating Temp.	158°F
Frequency Rating	50/60 Hz
Certifications	UL Listed
Frame	F
