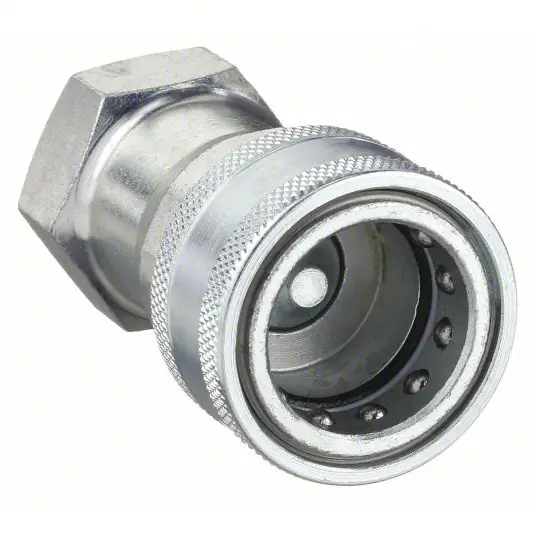

Eaton 5601-4-4S Hydraulic Quick Connect Hose Coupling 1/4 in Coupling Size, Steel, Sleeve, Female

Eaton 5601-4-4S Hydraulic Quick Connect Hose Coupling 1/4 in Coupling Size, Steel, Sleeve, Female

Original price was: $48.55.Current price is: $14.56.

SKU: SK0019239-US20260630-101428 Category: Tag:
Hydraulic Quick Connect Hose Coupling, Socket, 5600 Series, Steel, Coupling Size 1/4 in, Female, Max. Working Pressure @ 70 F 5,000 psi, Max. Flow Rate 4 lpm

Quick Coupler Type Hydraulic Coupler Body
Coupler Interchange Type 5600 A
Connection Type NPT
Coupler Flow Rate 1.0 gpm
Max. Pressure 5000 psi
Coupler Body Material Steel
Sleeve Material Steel
Coupler Finish Trivalent Chromium Zinc
Series 5600
Body Material Steel
Coupling Locking Type Sleeve
For Use With All Hydraulic Applications
Locking Mechanism Ball
Operating Temp. Range -40 Degrees to 250 Degrees F
Valve Design Poppet
Seal Material Nitrile
Seal Type Captive Valve
Coupler Connection Type FNPT
Shut Off double
Hansen Interchange 2-I-16; HA-15211-00
Standards ISO 7241-1 Series A
Parker Interchange 6601-4-4; 6125-12
Snap-Tite Interchange 61C-4-4; 61C4-4F
Max. Working Pressure @ 70 F 5,000 psi
Pull Ring Material PTFE
Coupling Component Socket
Valve Type Poppet
Maximum Vacuum 28 in Hg
Includes Bearing Yes
Finish/Coating Trivalent Chromium Zinc
Includes Shut Off Yes
Max. Flow Rate 4 lpm
Weatherhead Interchange 5601-4-4S
Includes Valve Yes
Fitting Type FNPT
Hose Fitting Gender Female
Safeway Interchange S565-2
