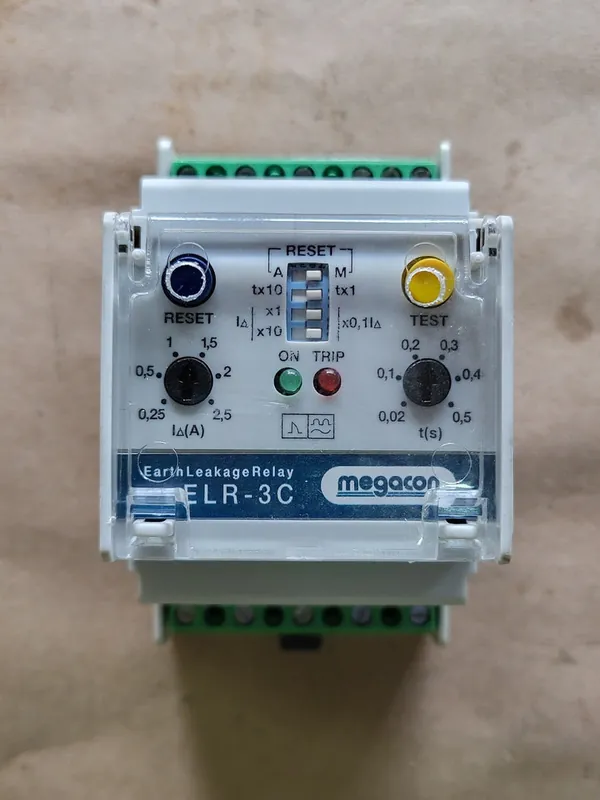

Earth Leakage Protection Relay ELR-3C

Auxiliary Voltage Supply: 12 Vac/dc, 24/48 vac/dc, 110 Vac/dc, 230-400 Vac +/-20%

Frequency: 50-60 Hz

Maximum Consumption: 3 VA

Current Tripping Adjustment Range t: 0.025/0.25A K=0.1 – 0.25/2.5A K=1 – 2.5/25A K=10 25/250A

Tripping Time Adjustment Range t: 0.02 / 0.5 sec. K=1 – 0.2 / 5 sec. K=10

Output : 1 Changeover Contact: 5A 250V

Working Temperature: -10 + 60 deg. C

Storing Temperature: -20 to 80 deg. C

Relative Humidity: <90%

Insulation Test: 2.5 kV 60 seg.

Wiring Methods: Screw terminals for cross section wires 2.5mm2

Mounting According DIN 50022: Snap on DIN rail 35mm

Protection Degree according DIN 40050: IP20
