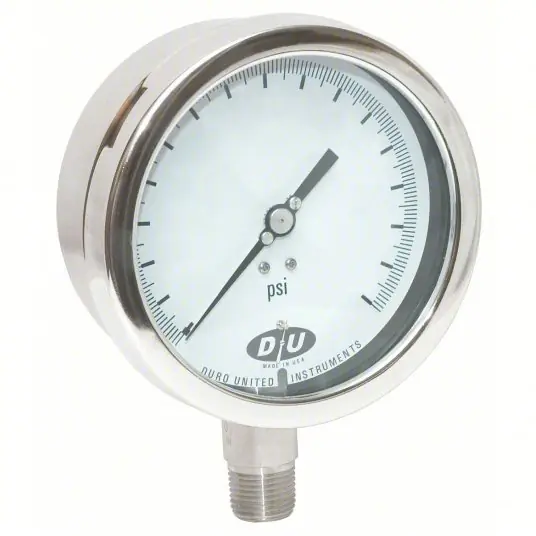

Industrial Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 30, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
Connection Location
Lower
Gauge Application
Demanding Industries Such as Chemical, Petroleum and Other Services Where Accurate and Dependable Gauges are Required
Includes
Pulsation Restrictor
Range
0 to 30 psi
Accuracy
+/-0.5%
Material
Stainless Steel
Color
Stainless Steel
Gauge Primary Range Values
0 to 30
Gauge Primary Range Units
psi
Gauge Connection Type
MNPT
Basic Gauge Case Material
Stainless Steel
Case Color
Silver
Graduations
5 psi
Liquid Filled
No
Gauge Lens Material
Glass
Basic Gauge Sensor Material
Stainless Steel
Basic Gauge Wetted Parts
Stainless Steel
Gauge Case Material
Stainless Steel
Gauge Sensor Material
316 Stainless Steel
Calibration Certificate Included
Yes, NIST with Data
Series
20
Max. Pressure (PSI)
30
Gauge Accuracy
+/-0.50%
Basic Gauge Lens Material
Glass
Smallest Graduation
0.2 psi
Gauge Connection Location
Bottom
Pressure and Vacuum Gauge Type
Pressure Gauge
Gauge Panel Mountable
No
Gauge Primary Range Smallest Graduation
0.2
Gauge Case Color
Stainless Steel
Operating Temp. Range
-40 Degrees to 275 Degrees F
Basic Gauge Socket Material
Stainless Steel
Gauge Socket Material
316 Stainless Steel
Case Material
Stainless Steel
Socket Material
Stainless Steel
Case Construction
Corrosion Resistant
Blowout Safety Back
No
Pressure Gauge Type
Industrial Pressure Gauge
Freeze Resistant Movement
No
Dial Color
White
Lens Material
Glass
Includes Mounting Hardware
No
Gauge Accuracy Grade
Grade 2A – Process
IP/NEMA Rating
Not Rated
Vibration Resistance
None
Dry Dampening Feature
None
Panel-Mountable
No
Gauge Wetted Parts
Stainless Steel
Process Connection Type
NPT
Process Connection Location
Bottom
Primary Pressure Range
0 to 30
Sensor Type
Bourdon Tube
Dial Face Color
White
Dial Face Material
Aluminum
Sensor Material
Stainless Steel
Hazardous Location Rating
Not Rated
Removable Bezel
Yes
Primary Scale Units
psi
Accuracy Scale
Full Scale
Non-Sparking
No
Movement Material
Stainless steel
Lens Material – Gauge
Glass
Gauge Case Liquid
None
Accuracy Grade
ASME B40.100 Grade 2A
Includes Calibration Certificate
NIST with Data
Process Connection Gender
Male
Pointer Characteristics
Lightweight Balanced Construction with Micrometer Adjustment
Cleaned for Oxygen Service
No
Liquid-Filled Case
No
Ambient Operating Temperature Range
-40 Degrees to 275 Degrees F
Movement Type
Rotary
Field Fillable
No
Bezel Mounting Type
Bayonet
Primary Scale Minor Graduations
0.2
Pressure Range Type
Pressure
Scale Type
Single
Includes Vent Plug
No
