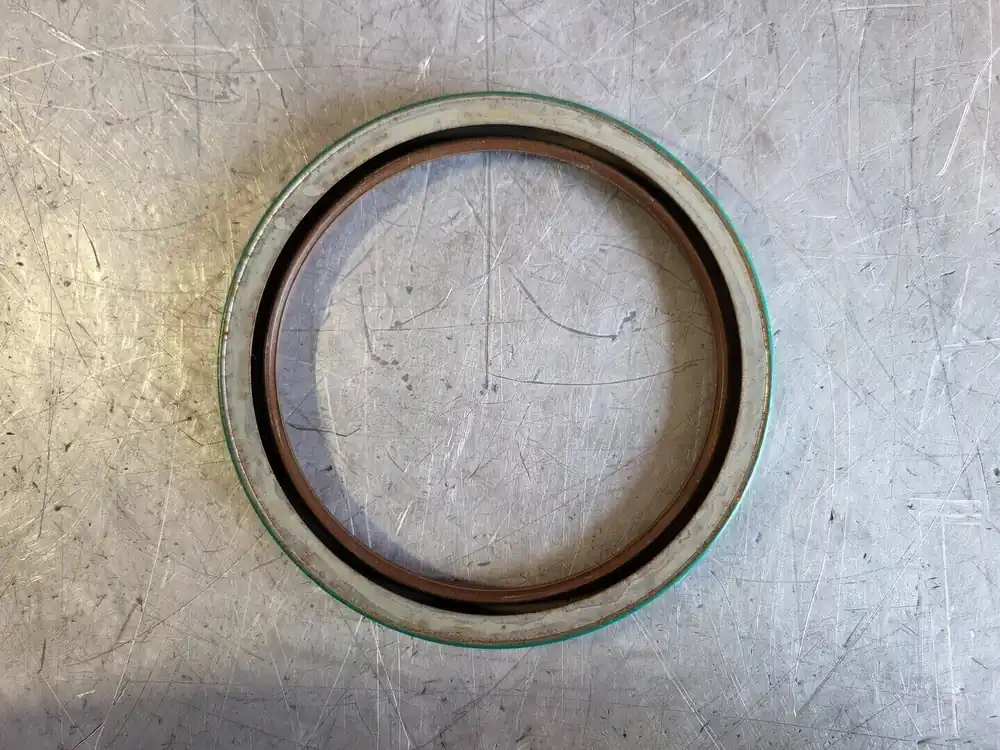

Double Lip Oil Seal w/ Metal Case 52498

OVERVIEW

SKF Wave lip seal has a metal OD and delivers industry’s highest pump rate

Sinusoidal motion of this seal generates up to 30% less heat and 20% less friction

Easy installation and a firm and accurate fit in the housing bore

SPECIFICATIONS

Case Design: Metal case, inner case

Casing: Steel

Compatible V-Rings: 401300;401301;401304;401305

Compatible Wear Sleeves: 99525

Construction Description: Oil seal, SKF WAVE lip

Design Type: CRWHA1

Installation Method: Housing press fit

Lip Material: Fluoro Rubber (FKM)

Lip Type: Wave Lip

Lubricant Type: Oil or Grease

Number of Lips: 2

Operating Temperature Range: -5 to 390 °F

Outside Diameter: 6.3750 in – 6-3/8 in

Overall Width: 0.5000 in – 1/2 in

Pressure Tolerance: 10 psi

Seal Type: Rotary shaft seal/Radial shaft seal, Rotary shaft seal/Radial shaft seal

Shaft Diameter: 5.2500 in – 5-1/4 in

Solid / Split: Solid

Spring Material: Carbon Steel

Spring Type: Garter Spring

Typical Application: Gearboxes, speed reducers, transmissions, motors, pumps, wheel ends, rollers
