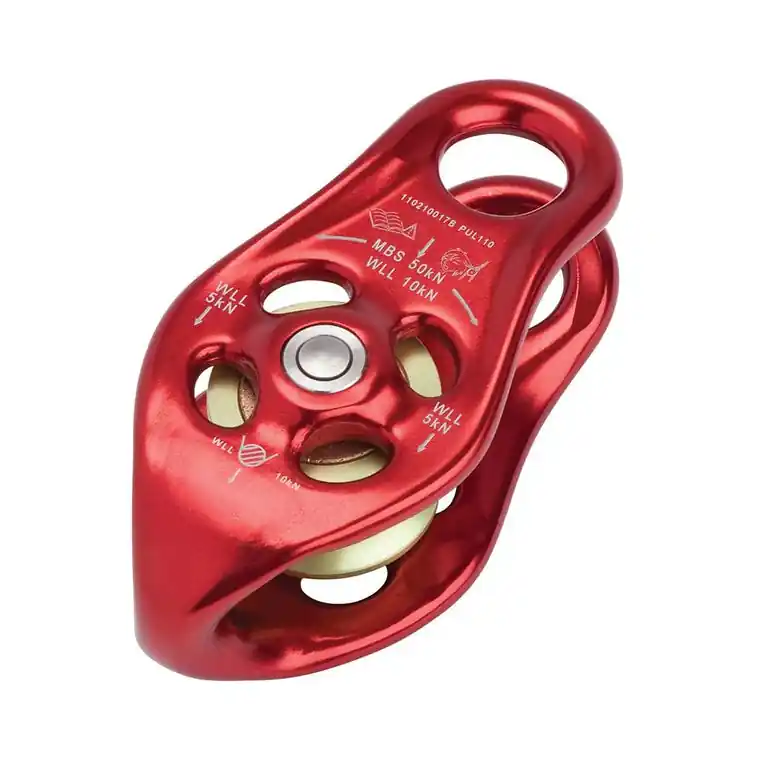

DMM – PUL110 – Pinto Rig Pulley Red (Small)

DMM Pinto Pulleys

DMM Pinto Pulleys have a hot forged frame 7075 T6 aluminum for exceptional strength to weight ratio. The Pinto Rig (Purple) (Large) Rigging Pulley
carries 6000-2RS series ball bearings. The Red (small) Pinto pulley carries
an oilite bushing.

Size of attachment holes reduce probability of locking carabiner rotation.

Compatible with DMM Ultra O and Boa carabiners.

Small max rope diameter: <14 mm; MBS: 40 kN (9000 lbs); WLL: 8 kN (1800 lbs); Efficiency: 71%

Large max rope diameter 16 mm; MBS: 50 kN (11,000 lbs); WLL: 10 kN (2200 lbs); Efficiency: 95%
