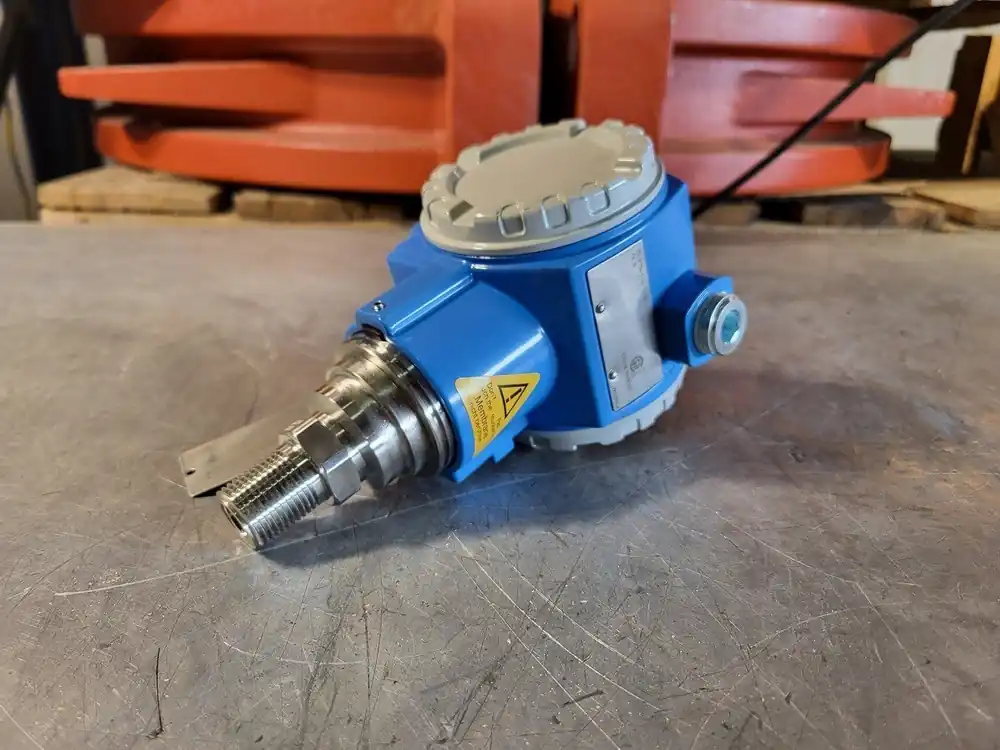

Digital Pressure Transmitter PMP71-WCC1P21RAAU w/ Mounting Kit

Application

The Cerabar S pressure transmitter is used for the following measuring tasks:

1. Absolute pressure and gauge pressure in gases, steams or liquids in all areas of process engineering and process measurement technology

2. Level, volume or mass measurement in liquids

3. High process temperature – without diaphragm seals up to 150 deg C (302 deg F) – with typical diaphragm seals up to 400 deg C (752 deg F)

4. High pressure up to 700 bar

5. International usage thanks to a wide range of approvals

Sensor Nominal Range: -100 … 1000 kPa

Calibration: 0 … 1000 kPa

Electronic Type: 4 … 20 mA, HART

Approval: CSA Class II, III Division 1, Groups E – G (Dust Ex)

Output; Operation: 4…20 mA HART, operation inside

Housing; Cable Entry; Protection: Aluminum T14 housing, optional display on the side, IP 66/67/NEMA 4X/ 6P, Thread 1/2 NPT

Sensor Range; Sensor Overload Limit (= OPL): 10 bar/1 MPa/150 psi g

Calibration; Unit: Sensor range; kPa/MPa

Membrane Material: AISI 316L

Process Connection; Material: Thread ANSI 1/2 MNPT 1/4 FNPT, AISI 316L (CRN)

Fill Fluid: Silicone oil fill

Additional Option 1: not selected

Additional Option 2: Mounting bracket for wall/pipe, AISI 304
