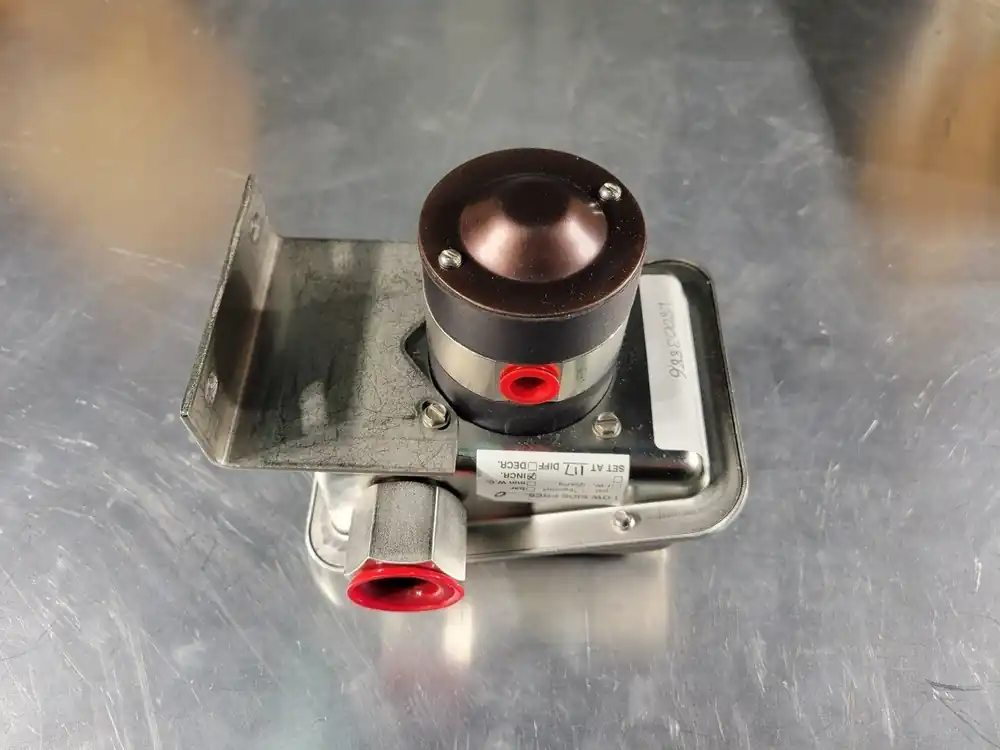

Differential Pressure Switch GDDN4GGB25

Setpoint: Factory set or field adjustable

Setpoint Repeatability: +/-1% of full range (Additional setpoint of +/-1% of range per 50 deg. F from initial setpoint set at 70 deg. F typical)

Enclosure Rating: NEMA 4X, IP66

Enclosure Material: Epoxy coated aluminum

Diaphragm Material: Buna N

Pressure Connection: 1/4 NPT female

Electrical Output: SPDT (15A, 120/250/480 VAC); 1/2A, 125 VDC; 1/4A, 250 VDC

Electrical Termination: 3/4 NPT Female

Ambient Temperature Range: -20 deg. F to 150 deg. F (-28 to 65 deg. C)

Process Temperature: 0 to 150 deg. F (-17.8 to 65.6 deg. C)

Pressure Range: 30 psi
