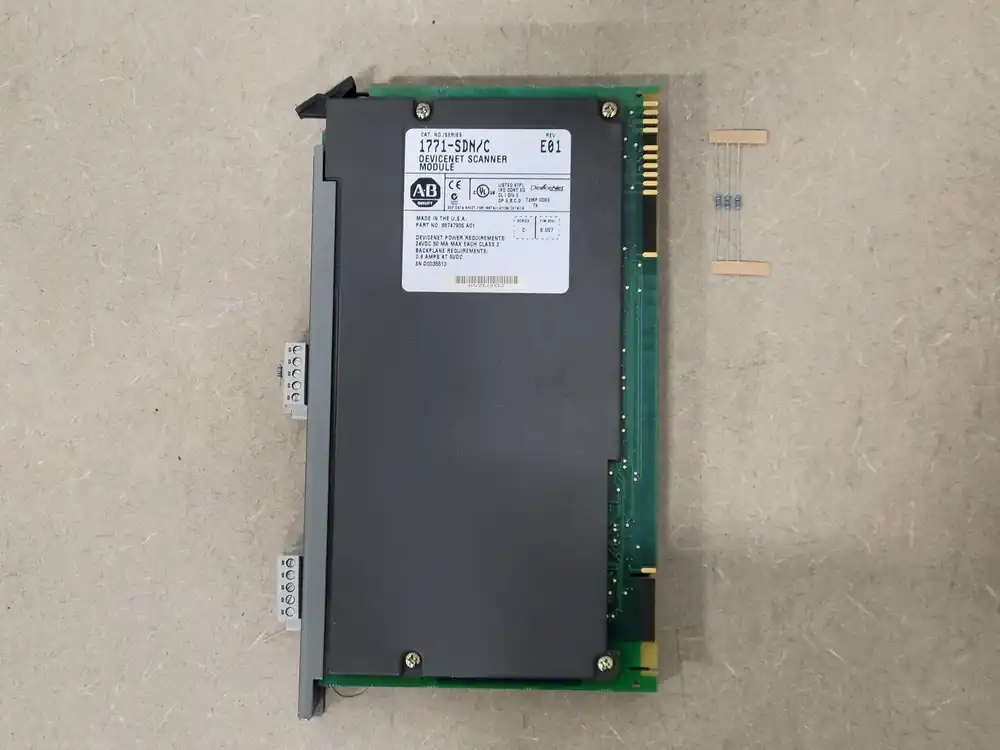

DeviceNet Scanner Module 1771-SDN/C

Series: C

Part Number: 95747905 A01

Baud Rate: 125 Kbits/s

Operating Temperature: 0-60 deg. C ( 32-140 deg. F)

Storage Temperature: -40 to 85 deg. C (-40 to 185 deg. F)

Operating Vibration: 2g @ 10-500 Hz

Operating Shock: 30 g

DeviceNet Power Consumption: 24 VDC, 50mA Per Channel Class 2

Backplane Current: 5 VDC, 0.8 A

Slot Width: 1 Slot

Module Type: DeviceNet Scanner Module

Node Address: 63

Module Location: 1771-A1B through -A4B or later I/O Chassis

Communication Port Protocol: DeviceNet

Operation: Scan I/O and Process Messages

Communication w/ PLC Processor: Block-Transfer w/ PLC-5 Processor

Max Continuous Current Per module: 2 Amperes

Max Current Per Module: 8 Amperes

Typical AC Signal Delay (On): 11 (+/-6) ms

Typical DC Signal Delay (On): 3(+/-2) ms

Typical AC Signal Delay (Off): 29 (+/-8) ms

Typical DC Signal Delay (Off): 30 (+/-7) ms

Wiring Arm: 1771-WN
