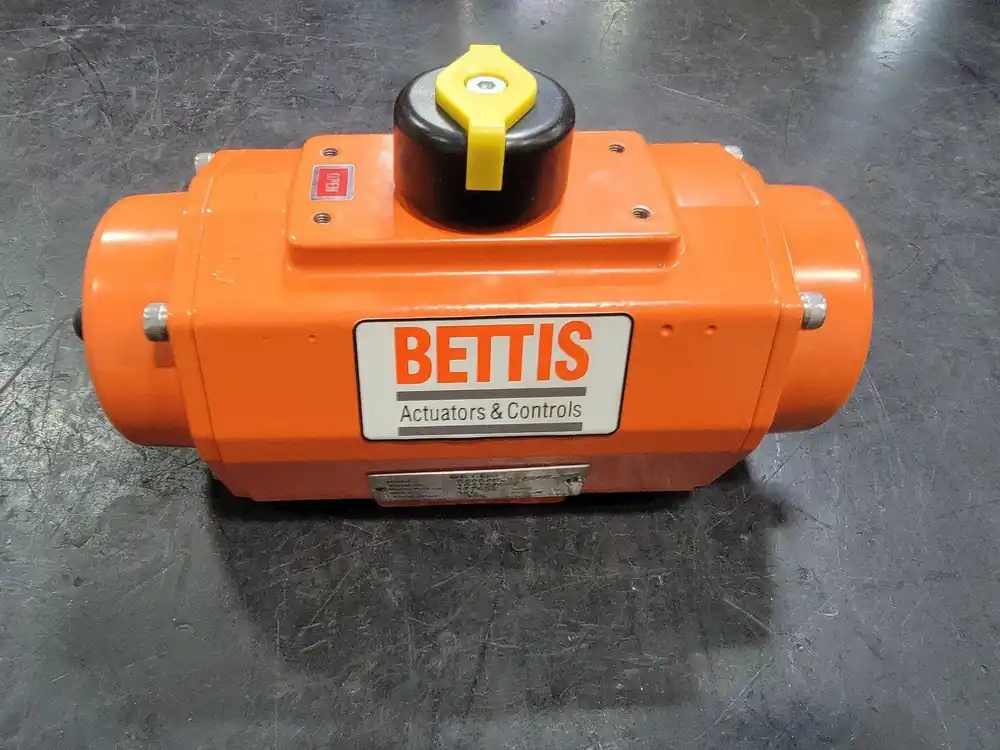

D-Series Spring Return Pneumatic Actuator DS0065.B2A04K.14K0
Original price was: $144.00.$36.00Current price is: $36.00.
| Specifications | |
|---|---|
| Model | DS0065.B2A04K.14K0 |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Type: D-Series & Spring Return Size: 0065 Tapped Mounting Bolt Holes: UNC (Standard Bettis Trim, ISO 5211 with UNC bolt holes on valve mounting side, Metric bolt holes on NAMUR patterns NPT ports) Travel Stops: Dual Travel stops Assembly Modes: Standard Bettis Trim Fail-CV (Mounted in line, standard) Spring Set Number: 04 Color Code: Bettis Orange Insert Code – Inner Square: 14 Indication Knob: Visual Indication (Knob, Standard) Pressure Range: 43 to 120 psig Operating Media: Air, dry or lubricated and inert gases Temperature Range: -4 deg. F to 176 deg. F Finish: Polyester non-TGIC based power coating Rotation: 90 deg. – Clockwise fail action |
Be the first to review “D-Series Spring Return Pneumatic Actuator DS0065.B2A04K.14K0”
