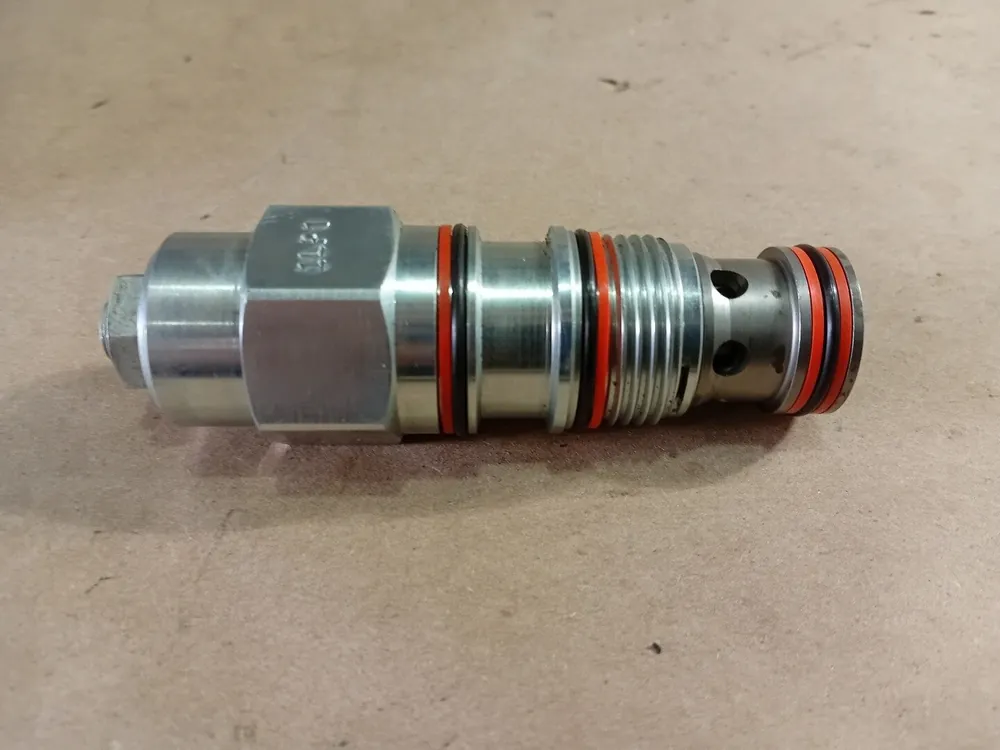

Counterbalance Valve CBEA LHN

Cavity: T-2A

Series: 2

Capacity: 30 gpm

Pilot Ratio: 3:1

Maximum Recommended Load Pressure at Maximum Setting: 3075 psi

Maximum Setting: 4000 psi

Pilot Configuration: Bleed through

Factory Pressure Settings Established at: 2 in3/min.

Maximum Valve Leakage at Reseat: 5 drops/min.

Adjustment – No. of CCW Turns from Min. to Max. Setting: 3.75

Operating Characteristic: Standard

Reseat: >85% of setting

Valve Hex Size: 1 1/8 in.

Valve Installation Torque: 45 – 50 lbf ft

Adjustment Screw Internal Hex Size: 5/32 in.

Locknut Hex Size: 9/16 in.

Locknut Torque: 80 – 90 lbf in.
