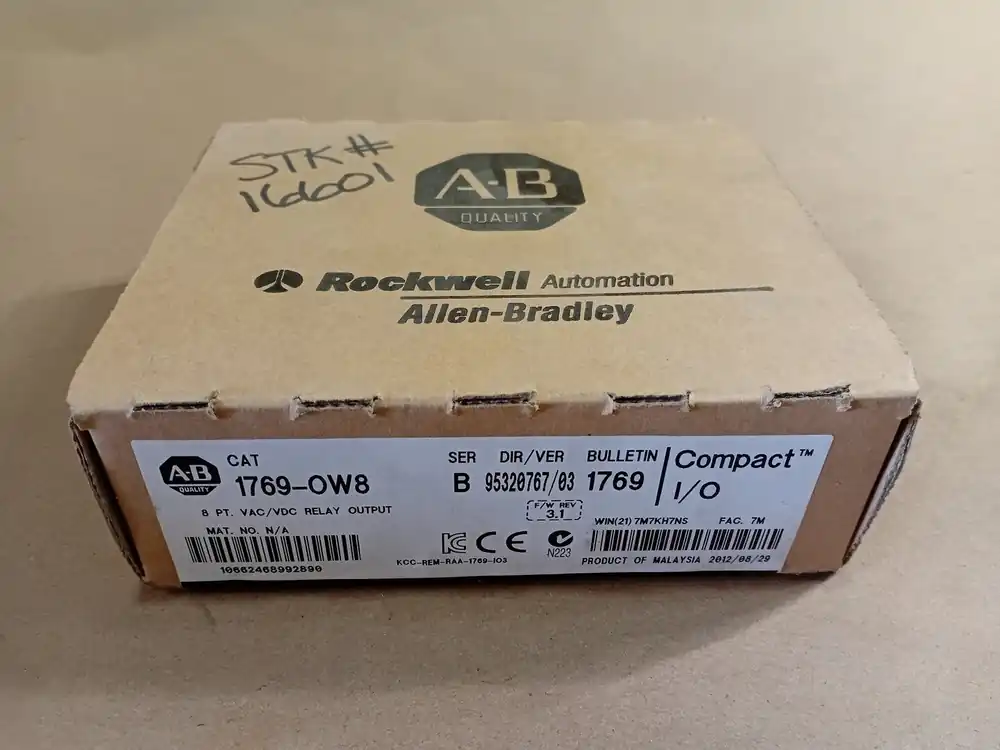

Compact I/O 8-Pt VAC/VDC Relay Output 1769-OW8

Outputs: 8 normally open, individually isolated (4 points/group)

Operating voltage range: 5.. 265V AC 5… 125V

DC Delay, on: 10 ms

Delay, off: 10 ms

Current draw @ 5.1V: 125 mA

Current draw @ 24V: 100 mA

Heat dissipation, max: 2.83 W

Off-state leakage, max: 0 mA

On-state current, min: 10 mA @ 5V DC

Current per point, max: 2.5 A

Current per module, max: 16 A

Dimensions: (HxWxD), approx 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.)
