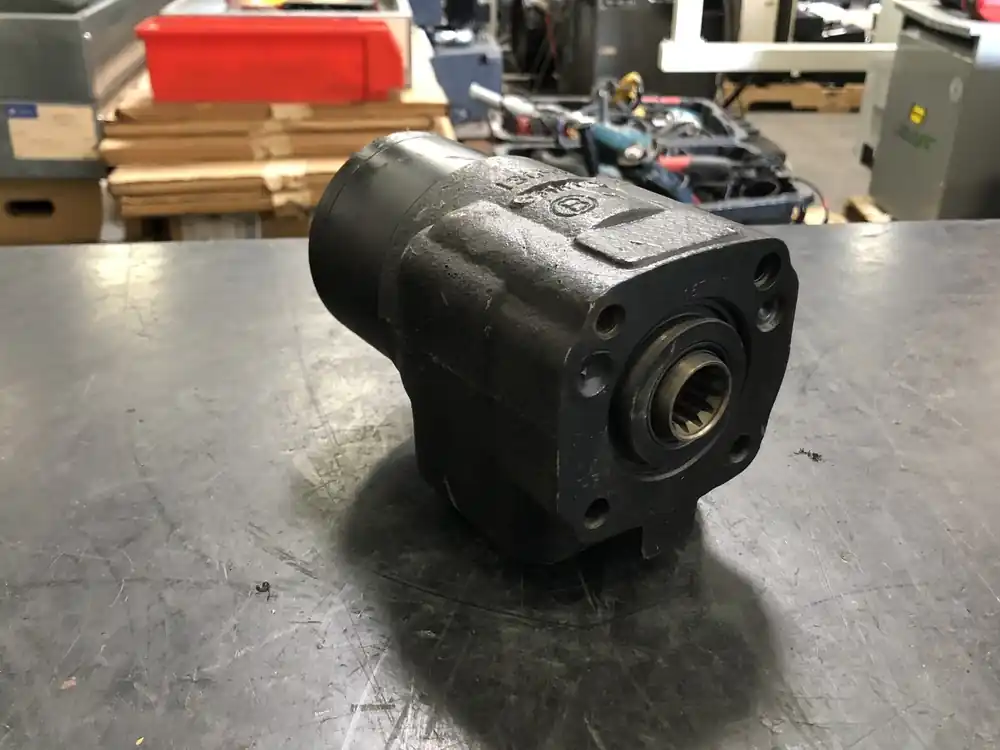

Char-Lynn Hydraulic Steering Control Unit 262-1181-002

Continuous Flow Rate: 25 L/min

Displacement: 17.9 in

Maximum Flow Rate: 7 gpm

Maximum System Operating Temperature: 93 deg. C

Maximum System Pressure: 3495 psi

Mounting Type: 2x.375-24 UNF-2B Port Face 4x.375-16 UNC-2B Mounting Face

Neutral Circuit Type: Closed Center

Operating Pressure Range: 241 bar

Port Configuration: SAE 8 (3/4-16 UNF)

Port Size: SAE 8 (3/4-16 UNF)

Rection Type: Non Reaction

Recommended Filtration: ISO 18/13 Cleanliness

Series: 110,230,450

Valve Options: Cylinder Relief Valve, Anti-Cavitation Valve, Inlet Check Valve, Manual Steering Check Valve

Working Pressure: 241 bar
