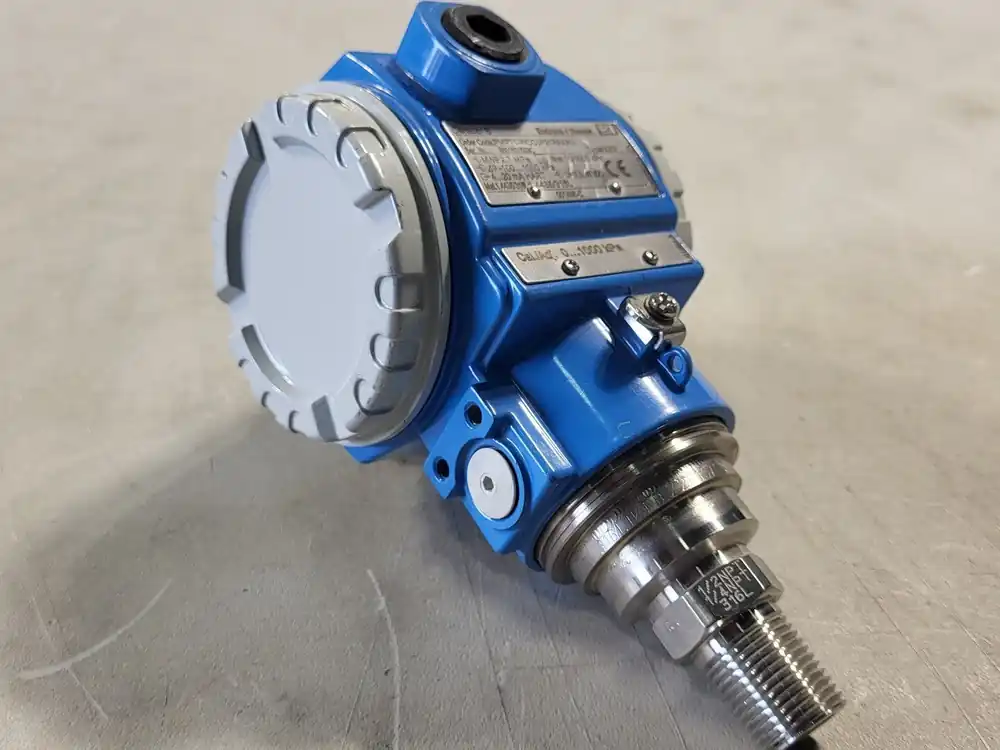

Cerabar-S Digital Pressure Transmitter PMP71-WCC1P21RAAAU

Approval: CSA Class II, III Division 1, Groups E-G (Dust Ex)

Output/Operation: 4…20mA HART

Max. Working Pressure: 2.7MPa

Span: 10/1000kPA

Housing/Cable Entry/Protection: Aluminium T14 housing, IP 66/67/NEMA 4X/6P, Thread 1/2 NPT

Sensor Range: 10bar/1MPa/150psig

Sensor Overload Limit: 40bar/4MPa/600psig

Calibration/Unit: Sensor range, kPa/MPa

Membrane Material: AISI 316L

Process Connection/Material: Thread ANSI 1/2 MNPT 1/4 FNPT, AISI 316L (CRN)

Fill Fluid: Silicone Oil Fill
