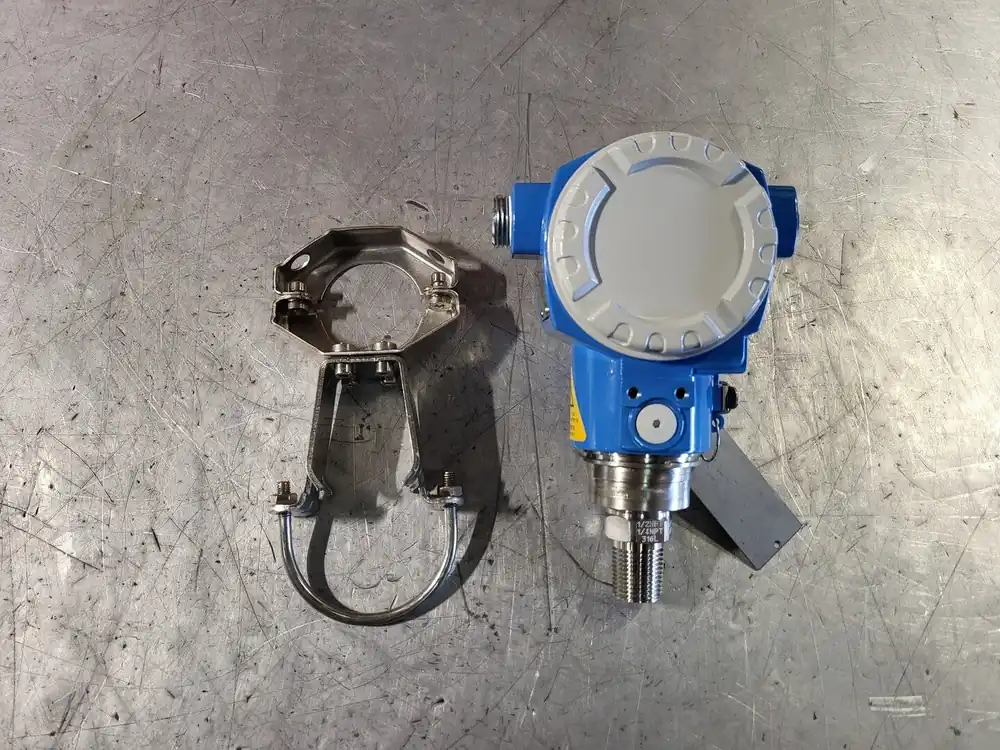

CERABAR-S Digital Absolute/Gauge Pressure Transmitter PMP71

Approval: CSA Class II, III Division 1, Groups E-G (Dust Ex)

Output; Operation: 4…20 mA HART

Housing; Cable Entry; Protection: Aluminium T14 Housing, optional display on side, IP 66/67/NEMA 4X/6P, Thread 1/2 NPT

Sensor Nominal Range: -1…10bar

Calibration: 0…500kPa

Sensor Range: kPa/MPa

Membrane Material: AISI 316L

Process Connection; Material: Thread ANSI 1/2 MNPT 1/4 FNPT, AISI 316L (CRN)

Fill Fluid: Silicone Oil Fill

Additional: AISI 304 Wall/Pipe Mounting Bracket
