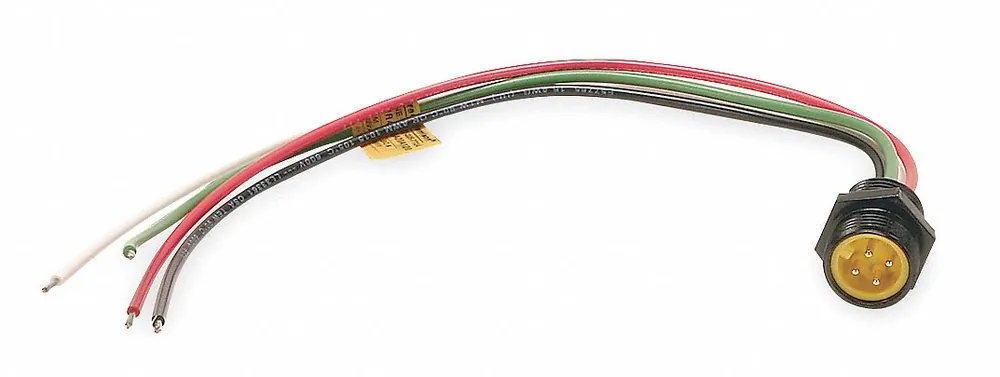

External Thread Receptacle, Number of Pins 4, Plug or Connector Type Male, Straight Plug End, Max. Voltage 600V AC/DC, Max. Current 10 A, Wire Size 16 AWG, Threads 7/8-16, Face Dia. 0.55 in, Keyway Single, Body Material Die-Cast Zinc, Color Yellow, NEMA Rating 6P, IP Rating IP67, Wire Length 1 ft, Standards CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
Product Type
External Thread Receptacle
End 1 Number of Pins
4
Cable Jacket Material
PVC
Cable Jacket Color
Black
IP Rating
IP67, IP68
Max. Amps
10 A
Maximum Operating Temperature
221 Degrees F
Plug End
Straight
Max. Voltage
600V AC/DC
Standards
CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
Body Material
Die-Cast Zinc
Plug or Connector Type
Male
Keyway
Single
NEMA Rating
6P
Threads
7/8-16
Color
Black, White, Red, Green
Features
Gold Over Nickel-Plated Contacts
Temp. Range
-4 Degrees to 221 Degrees F
Poles
4
CSA
LR6837
UL
E152210
Orientation
Straight
Voltage – Maximum
600V AC/DC
Gender
Male
Material – Component
Zinc Die-Cast with Black Epoxy
Temperature Range – Operating
-20°C to +105°C
Coupling Type
External Thread
Current – Maximum per Contact
10.0A
Wire/Cable Type
UL 1015
NEMA Enclosure Rating
6
Number of Keyways
1
Series
130013
AC Voltage Rating – Maximum
600 V
Operating Temperature – Minimum
-4 Degrees F
Mounting Style
Panel
DC Voltage Rating – Maximum
600 V
Mounting Thread Type
NPT
Connection Color
Black
Country of Origin
Mexico
