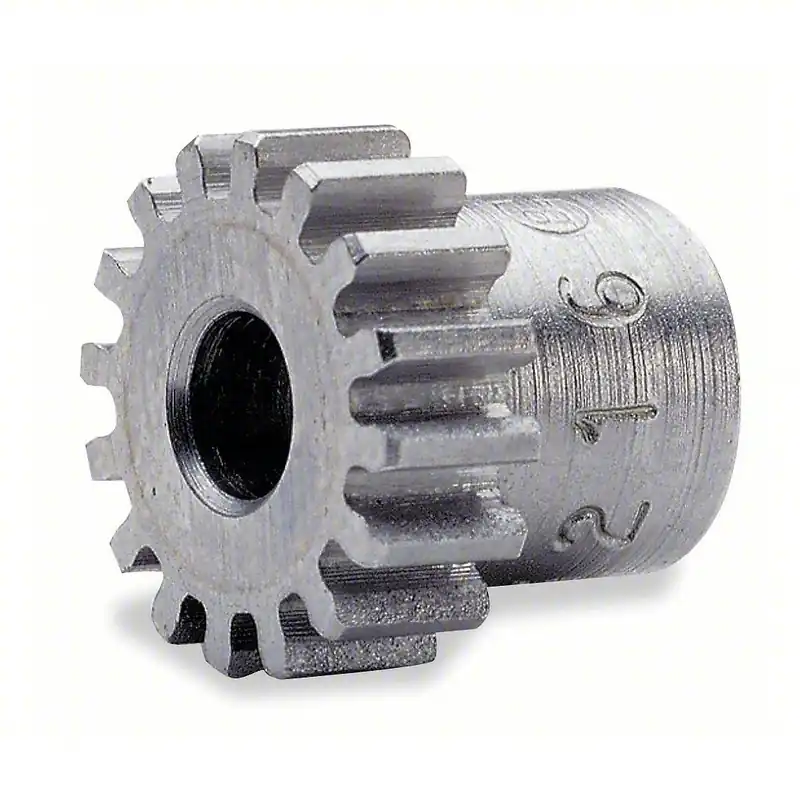

Spur Gear, Bore Diameter 1 in, Hub Diameter 2.46 in, Hub Projection 0.88 in, Face Width 1 1/2 in, Pitch Diameter 3 in, Material Steel, Pressure Angle 14.5 Degrees , Compatible Gear Rack Manufacturer Part Number L520-6, L521-6, Diametral Pitch 6, Keyway No
Pitch
6
Number of Teeth
18
Material
Steel
Agency Compliance
AGMA
Pressure Angle (Deg.)
14.5
For Use With
L520-6, L521-6
Hub Projection (In.)
0.88 in
Keyway
N
Setscrew
Not Included
Function
Transmitting Motion and Power Between Parallel Shafts, Minimizes Backlash to Perform Smooth and Quiet Operation, Close Concentricity Between Bore, Pitch Diameter and Outside Diameter Facilitates Reboring Modifications
Standards
AGMA
Pressure Angle
14.5 Degrees
Gear Material & Finish
Steel
Compatible Gear Rack Manufacturer Part Number
L520-6, L521-6
Diametral Pitch
6
Hub Projection
0.88 in
Hub Design
Hub without Set Screw
System of Measurement
Inch
