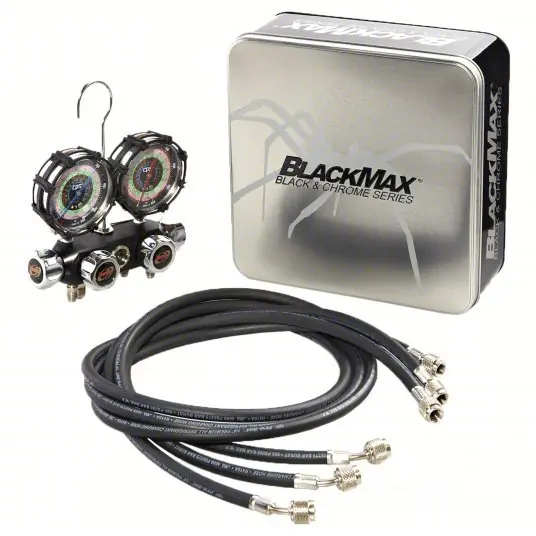

Manifold Gauge Set, Number of Valves 4, R-134A, R-22, R-404A, R-410A, Number of Hoses 3, 5 ft, 1.00, Anodized Aluminum (Body), Silicon (Dampening Cup), Essential Tools for Install/Service of Ductless Mini-Split A/C Units with 5/16 in (1/2 In.-20 UNF) Fittings, Includes Carrying Case
Number of Valves
4
Refrigerant Compatibility
R-134A, R-22, R-404A, R-410A
Number of Hoses
3
Hose Color
Black
Material
Anodized Aluminum (Body), Silicon (Dampening Cup)
Features
Essential Tools for Install/Service of Ductless Mini-Split A/C Units with 5/16 in (1/2″-20 UNF) Fittings
Body Material
Aluminum
Gauge Accuracy
1.00
Includes
Carrying Case
Includes Sightglass
Sightglass Included
Vacuum Port Connection Thread Direction
Right-Hand
Manifold Port Connection Thread Direction
Right-Hand
Display Illumination
Non-Illuminated
A2L Compatibility
Not A2L Compatible
Response Time
Instantaneous
Hose Connection Thread Direction
Right-Hand
Temperature Units Measured
Degrees F
Gauge Type
High Side/Low Side
High Side Display Pressure – Maximum
800 psi
High Side Display Pressure – Minimum
0 psi
For Refrigerant Type
R-134A, R-22, R-404A, R-410A
Product Type
Manifold Gauge Set
Accuracy
+/-1%
Manifold Port Connection Gender
Male
Low Side Display Pressure – Maximum
500 psi
Temperature Resolution
1 Degrees F
Vacuum Port Connection Gender
Female
Includes Vacuum Port
Vacuum Port Included
Includes Gauge Boots
Boots Included
Vacuum Port Connection Type
SAE
Display Type
Analog
Calibration Certificate Type
Not Certified
Pressure Units Measured
psi
Hose Connection Type
SAE
Series
BlackMax
Low Side Display Pressure – Minimum
30 in Hg
Pressure Resolution
0.1 psi
Manifold Port Connection Type
SAE
