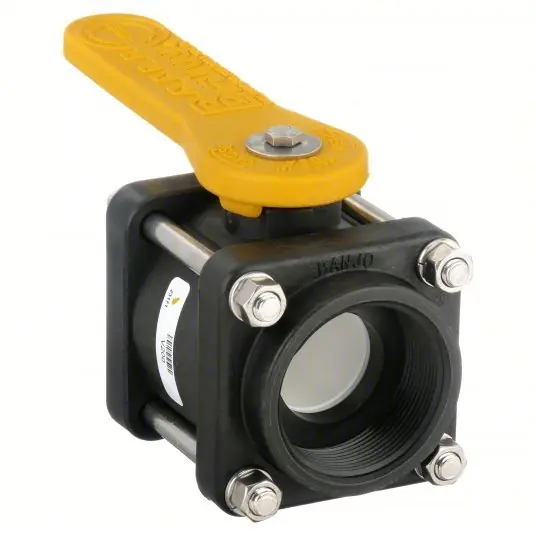

Banjo V200 Manual Two-Way Ball Valve 2 in, Polypropylene, Straight, FNPT x FNPT, Three-Piece, Lever

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Water, Valve Construction Three-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure – Operating 225 psi, Maximum Pressure – Steam Not Rated, Maximum Pressure – Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Full Port, Handle – Locking Non-Locking, Handle Type Lever

Body Material	Polypropylene
Body Style	Inline
Stem Type	Self-Lubricating
Ball Valve Product Group	Manual
Port	Standard
Handle Type	Lever
Temp. Range	Up to 150 Degrees F
Seat Material	PTFE
Connection Type	FNPT x FNPT
UPC	791206022070
Handle Material	Polypropylene
Body Seal Material	FKM
Ball Valve Basic Body Material	Plastic
Valve Structure	3-Piece
Stem Material	Polypropylene
Max. Pressure	150 psi CWP
Ball Material	Polypropylene
Seal Material	FKM
Type	Three Piece
Connection	FNPT
Material of Construction	Polypropylene
Sub-Category	Synthetic Ball Valves
Ball Port Style	Full Port
For Media	Water
Operating Temperature – Maximum	150 Degrees F
Handle – Locking	Non-Locking
Maximum Pressure – Combustible Gas	Not Rated
Maximum Pressure – Operating	225 psi
Connection Type – Side 2	NPT
Valve Ways	2-Way
3-A Standard Compliance	Not Rated
Valve Body Style	Straight
Connection Gender – Side 2	Female
Operating Temperature – Minimum	0 Degrees F
Coefficient of Volume (Cv)	Not Available
Connection Gender – Side 1	Female
Vacuum Service Rating	Not Available
Connection Type – Side 1	NPT
Vented Ball Valve	Non-Vented
Valve Construction	Three-Piece
Maximum Pressure – Steam	Not Rated
Color – Valve Handle	Yellow
