NEMA 180 frame three-phase general purpose AC motors have a standard 1-1/8″ diameter, 2-3/4″ length shaft whose center is 4-1/2″ above the mounting surface. Variations to the frame’s standard dimensions and design are indicated by a letter designation following the frame number, such as 182TC. The letter “T” specifies integral HP motor dimension standards set by NEMA in 1953 and 1964, “C” indicates that the motor can be face mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).
Motor Application
General Purpose
Phase
Three
HP
5
Nameplate RPM
1750 rpm
Voltage
208-230/460V AC
Full Load Amps
13.4/6.7 A
Frame
184TC
Hz
60 Hz
Motor Service Factor
1.15
Motor Thermal Protection
None
Insulation Class
F
NEMA Design
B
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
Motor Mounting Position
Horizontal
Inverter Rated
Yes
Motor Frame Material
Steel
Shaft Dia.
1-1/8 in
Shaft Length
2-5/8 in
Overall Length
18-1/16 in
Includes
Conduit Box
Weight
89 lb
Nominal Efficiency
89.5 %
Standards
CSA; CSA EEV; UR
Country of Origin
United States
Reviews
There are no reviews yet.

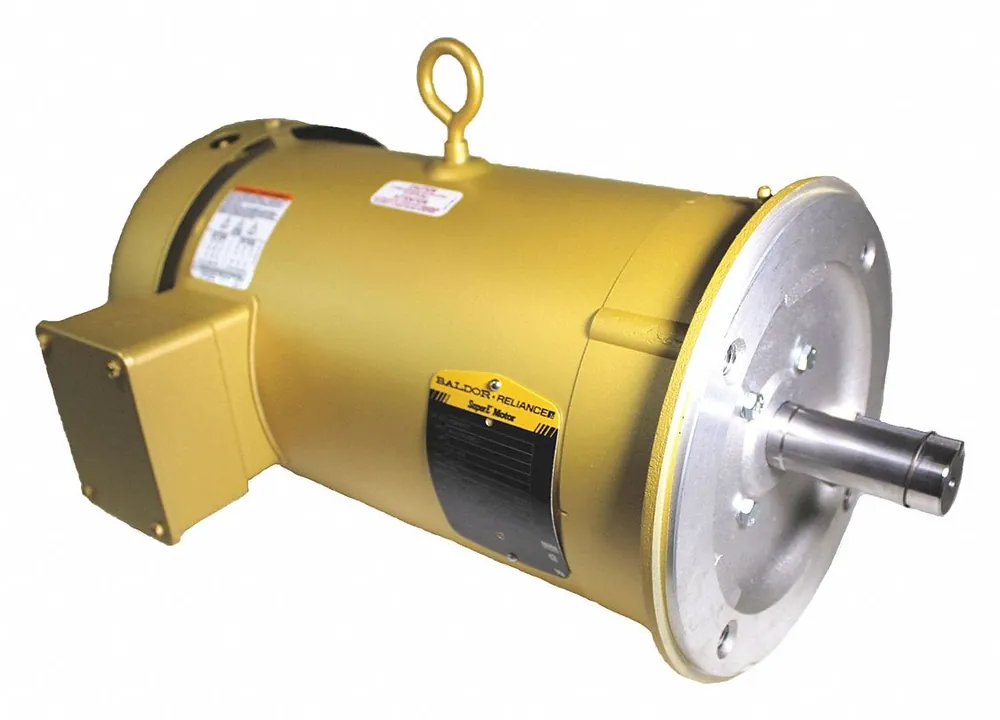

Be the first to review “Baldor VEM3615T General Purpose Motor, 5 HP, 208-230/460V AC, Totally Enclosed Fan Cooled, C-Face Mount, 1750 rpm, 184TC Frame”Cancel Reply
