NEMA 180 frame three-phase general purpose AC motors have a standard 1-1/8″ diameter, 2-3/4″ length shaft whose center is 4-1/2″ above the mounting surface. Variations to the frame’s standard dimensions and design are indicated by a letter designation following the frame number, such as 182TC. The letter “T” specifies integral HP motor dimension standards set by NEMA in 1953 and 1964, “C” indicates that the motor can be face mounted. The combined suffix “CH” indicates that the face-mounting dimensions differ from frames with a “C” letter designation. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).
Motor Application
General Purpose
Phase
Three
Motor Design
Three-Phase
HP
5
Nameplate RPM
1750 rpm
No. of Speeds
1
Voltage
208-230/460V AC
Full Load Amps
13.2/6.6 A
Frame
184T
Usable @ 208V
Yes
Usable @ 200V
No
Hz
60 Hz
Motor Service Factor
1.15
Max. Ambient Temp.
40 °C
Motor Thermal Protection
Auto
Duty Cycle
Continuous
Insulation Class
F
NEMA Design
B
Motor Enclosure Design
Open Drip Proof
Motor Shaft Rotation
CW/CCW
Motor Mounting Type
Rigid Base
Motor Mounting Position
All Angle
Inverter Rated
Yes
Motor Shaft Design
Keyed
Motor Frame Material
Steel
Shaft Dia.
1-1/8 in
Shaft Length
2-3/4 in
Motor Bearings
Ball
Length Less Shaft
13-3/4 in
Overall Length
16-1/2 in
Includes
Conduit Box
Weight
81 lb
Nominal Efficiency
89.5 %
Standards
CSA; CSA EEV; UR
Manufacturer’s Warranty Length
3 yr
Country of Origin
United States
Reviews
There are no reviews yet.

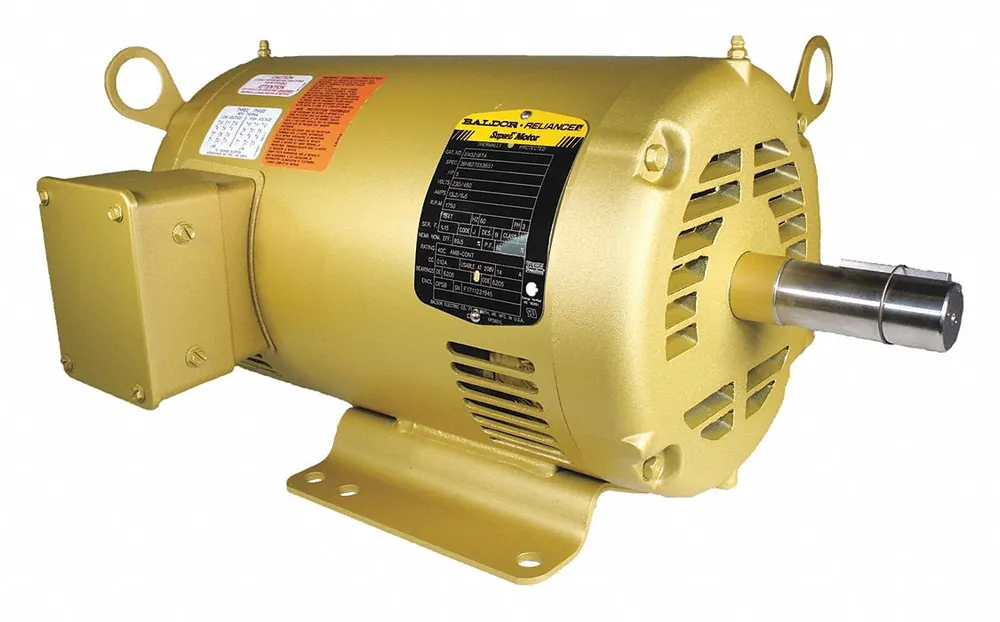

Be the first to review “Baldor EM3218TA General Purpose Motor, 5 HP, 208-230/460V AC, Open Drip Proof, Rigid Base Mount, 1750 rpm, 184T Frame, Auto Thermal Protection”Cancel Reply
