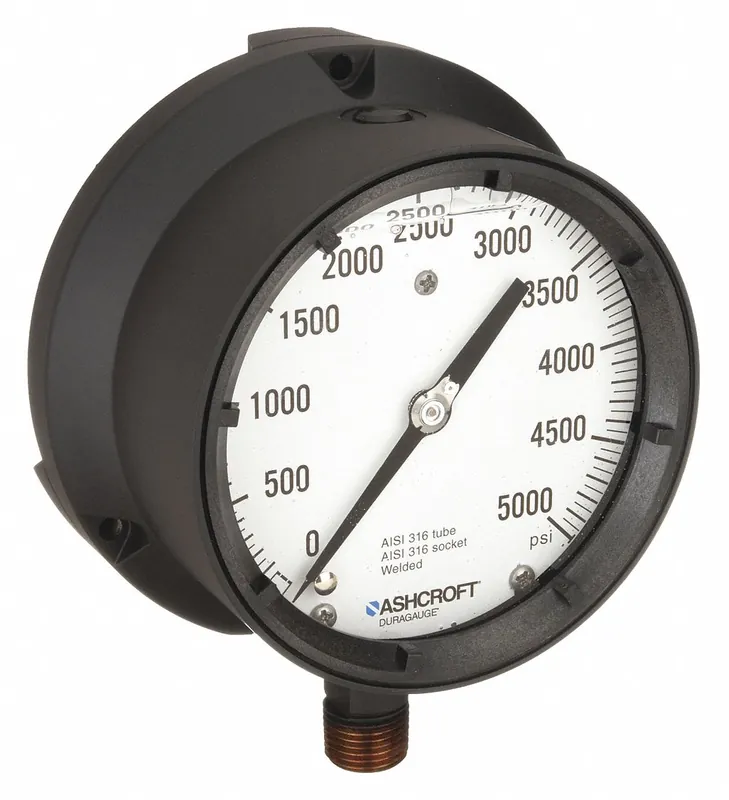

These gauges feature stainless steel cases and wetted parts to resist corrosion, rust, and caustic chemicals. Their case resists vibration and pulsation, and they are used in high temperature process media where temperatures exceed 140°F.
Accuracy
±0.5%
Accuracy Grade
ASME B40.100 Grade 2A
Pressure Range
0 psi to 5,000 psi
Primary Scale Units
psi
Process Connection
1/2 in NPT Male
Process Connection Location
Bottom
Nominal Dial Size
4-1/2 in
Dial Color
White
Dial Face Material
Aluminum
Lens Material
Glass
Case Material
Epoxy-Coated Aluminum
Case Color
Black
Case Depth
3.375 in
Case Diameter
5.812 in
Case Finish
Epoxy Coated
Bezel Material
Polypropylene
Wetted Parts Material
316L Stainless Steel
Sensor Material
316L Stainless Steel
Sensor Type
Bourdon Tube
Socket Material
316L Stainless Steel
Movement Material
400 Stainless Steel
Pointer Color
Black
Pointer Material
Aluminum
Liquid-Filled Case
Yes
Gauge Case Liquid
Glycerin
Field Fillable
Yes
Vibration Resistance
Liquid-Filled
Blowout Safety Back
Yes
Burst Pressure
25,300 psi
Process Media Temperature
20 to 150 °F
Operating Temperature
20 to 150 °F
Primary Scale Minor Graduations
50
Primary Scale Numeric Increments
500
IP Rating
IP66
NEMA Enclosure Rating
4X
Mounting Type
Stem-Mount
Standards
ASME, CE, CRN, UKCA
Series
1379
Manufacturer Warranty
10 yr
