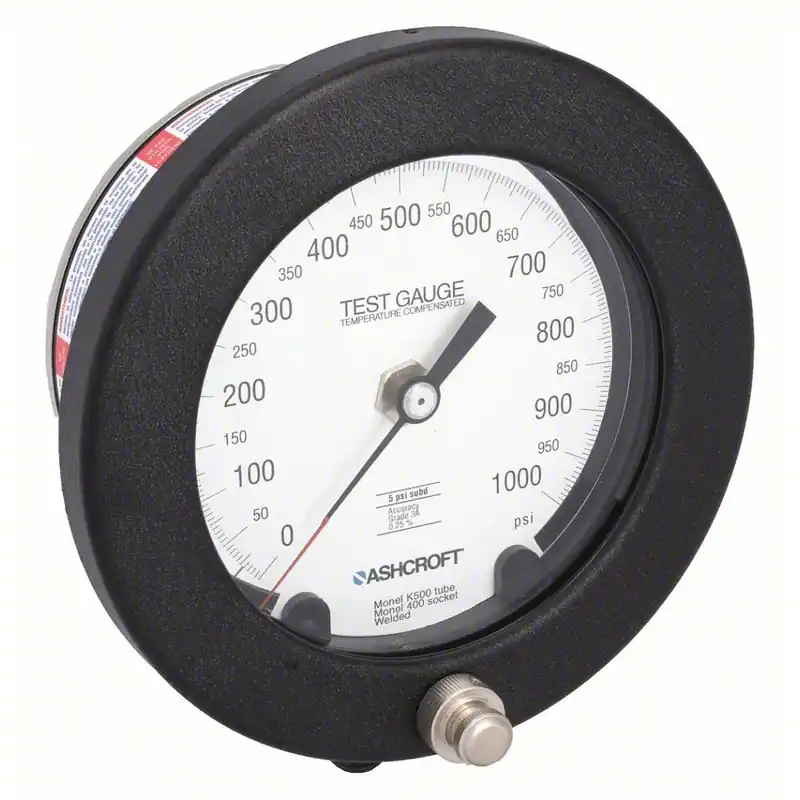

Ashcroft 45-1082PS 02L 1000 Test Pressure Gauge, 0 to 1,000 psi, Std Gauge, Grade 3A – Test, 1082

Pressure Gauge, Gauge Type Test, Dial Size (In.) 4-1/2, Range 0 to 1000 psi, Connection Size 1/4″ NPT, Connection Location Lower, Smallest Graduation (PSI) 5, Accuracy (%) +/-0.25, Case Material Epoxy Coated Aluminum, Case Color Black, Socket Material Monel, Tube Material Monel, Lens Material Glass, Ring Material Hinged Steel, Operating Temp. Range (F) -40 Degrees to 150 Degrees , Series 1082, Manufacturers Warranty Length 1 Year

Gauge Application	Test
Range	0 to 1000 psi
Accuracy	+/-0.25%
Material	Epoxy Coated Aluminum
Color	Black
Application	Laboratory, Medical, OEM Applications, Test and Measurement
Gauge Primary Range Values	0 to 1000
Gauge Primary Range Units	psi
Gauge Connection Type	MNPT
Basic Gauge Case Material	Aluminum
Case Color	Black
Smallest Graduation	5 psi
Basic Gauge Sensor Material	Monel
Basic Gauge Socket Material	Monel
Calibration Certificate Included	No
Gauge Connection Location	Bottom
Basic Gauge Wetted Parts	Monel
Gauge Lens Material	Glass
Operating Temp. Range	-40 Degrees to 150 Degrees F
Gauge Accuracy	+/-0.25%
Liquid Filled	No
Gauge Primary Range Smallest Graduation	5
Max. Pressure (PSI)	1000
Basic Gauge Lens Material	Glass
Gauge Socket Material	Monel 400
Graduations	100 psi
Pressure and Vacuum Gauge Type	Pressure Gauge
Gauge Case Color	Black
Gauge Sensor Material	Monel K
Series	1082
Gauge Case Material	Aluminum
Gauge Panel Mountable	No
Gauge Primary Range Numbered Graduations	100
Socket Material	Monel
Pressure Range	0 to 1,000 psi
Case Material	Aluminum
Standards	CRN Registered
Process Connection	1/4 in NPT Male
Primary Units	psi
Pointer Characteristics	Knife-Edge
Gauge Accuracy Grade	Grade 3A – Test
Primary Scale Minor Graduations	5
Primary Pressure Range	0 to 1,000
Process Connection Type	NPT
Sensor Type	Bourdon Tube
Removable Bezel	No
Test Pressure Gauge Type	Test Pressure Gauge
Movement Type	Rotary
Bezel Material	Hinged Steel
Adjustable Pointer	No
Primary Scale Units	psi
Pointer Color	Black with Red Tip
Ambient Operating Temperature Range	-20 Degrees to 200 Degrees F, -29 Degrees to 93 Degrees C
Dial Face Material	Aluminum
Scale Type	Single
Sensor Material	Monel
With Calibration Certificate	Standard Gauge
Lens Material	Glass
Pressure Range Type	Pressure
Process Connection Gender	Male
IP/NEMA Rating	Not Rated
Pointer Material	Aluminum
Case Finish	Epoxy Coated
Includes Mounting Hardware	No
Includes Calibration Certificate	No
Freeze Resistant Movement	No
Primary Range	0 to 1,000
Movement Material	400 Stainless Steel
Process Connection Location	Bottom
Case Construction	Solid Front
Primary Scale Numeric Increments	50
Blowout Safety Back	No
Panel-Mountable	No
Gauge Wetted Parts	Monel
Dial Color	White
Hazardous Location Rating	Not Rated
Panel Mount Characteristics	(3) Mounting Studs CC Threaded Equally Spaced on E Dia Bolt Circle
Primary Pressure Scale Color	Black
Process Temperature Range	-20 to 250 Degrees F
Accuracy Scale	Full Scale
Cleaned for Oxygen Service	No
Pressure Gauge Type	Test Pressure Gauge
Accuracy Grade	ASME B40.1 Grade 3A
Burst Pressure	16,000 psi
Gauge Mounting Type	Flush-Mount
