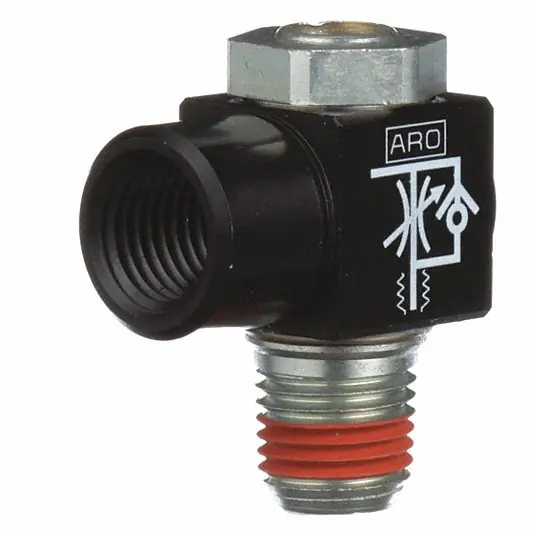

ARO 119307-250 Flow Control Valve Angle, 1/4 in Male NPT Inlet, 1/4 in Female NPT Outlet, 15 psi to 150 psi

Flow Control Valve, Directions Controlled 1, Valve Inlet Port 1/4 in NPT, Valve Outlet Port 1/4 in NPT, Valve Max. Pressure Rating 150 psi, Max. CFM – Valves 33 cfm, Max. Temp. 0 to 158 Degrees F, Nickel-plated Brass Body, 360 Degrees Rotation, Screwdriver Speed Adjustment, Stainless Steel Spring, Anodized Aluminum Swivel, Length 1 39/64 in, Width 3/4 in, Height 1 19/64 in, Pneumatic Valves Product Group Flow Control Valve

Max. Operating PSI	150
Inlet Port	1/4″ NPT
Body Material	Brass
Speed Adjustment	Screwdriver
Max. Temp.	0 to 158 Degrees F
Valve Inlet Port	1/4 in NPT
Rotation	360 Degrees
Swivel	Anodized Aluminum
Outlet Port	1/4″ NPT
Max. CFM – Valves	33 cfm
Directions Controlled	1
Body	Nickel-plated Brass
Valve Max. Pressure Rating	150 psi
Coefficient of Volume	0.7
Spring	Stainless Steel
Valve Outlet Port	1/4 in NPT
Seal Material	Buna-N
Spring Material	Stainless Steel
Finish	Nickel Plated
Operating Temperature – Maximum	158 Degrees F
Outlet Port Connection Gender	Female
Adjustment Method	Screwdriver
Inlet Port Connection Gender	Male
Configuration	Angle
Operating Temperature – Minimum	32 Degrees F
Product Type	Flow Control Valve
Operating Pressure – Maximum	150 psi
Inlet Port Connection Type	NPT
Outlet Port Connection Type	NPT
Flow Rate – Maximum	33 scfm
Control Direction	Uni-Directional
Operating Pressure – Minimum	15 psi
