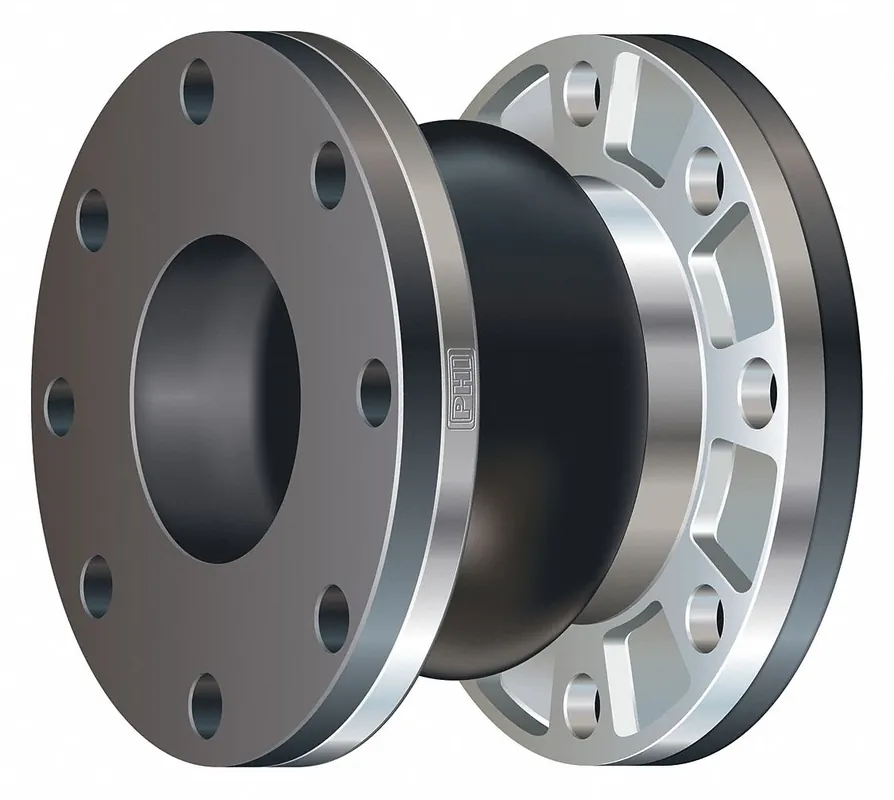

Expansion Joint, Bolt Circle Diameter 6 in, Bolt Hole Size 3/4 in, Bolt Hole Threading Unthreaded, Burst Pressure 600 psi, Compression Distance 1 3/4 in, Connection Type Flanged, Expansion Distance 3/4 in, Expansion Joint Type Single Bulb, Features Metal Collar Cast into Retaining Ring Molded Integral Flange, Flange Diameter 7 1/2 in, Flange Material Steel, Joint Material EPDM
Type
Wide Arch
Material
EPDM
Bolt Holes
4
Connection
Flanged
Max. Pressure
150 psi
Standards
ANSI
Vacuum
15 In Hg At 72 Degrees F
Pipe Fitting Material
EPDM
Reinforcement Material
Metal
Minimum Operating Temperature
-50 Degrees F
Seal Material
EPDM
Bolt Hole Threading
Unthreaded
Maximum Operating Temperature
240 Degrees F
Resistance Properties
Abrasion Resistant, Heat Resistant, Oil Resistant
Offset Distance
3/4 in
Expansion Joint Type
Single Bulb
Expansion Distance
3/4 in
Maximum Vacuum Pressure
15 in Hg
Connection Type
Flanged
Flange Material
Steel
Maximum Operating Pressure
150 psi
Compression Distance
1 3/4 in
For Flange Type
ANSI Class 125, ANSI Class 150
Joint Material
EPDM
Features
Metal Collar Cast into Retaining Ring, Molded Integral Flange
Burst Pressure
600 psi
Number of Bolt Holes
4
Maximum Off-Center Angle
30 Degrees
Temp. Range
-50 to 240 Degrees F
Country of Origin
China
