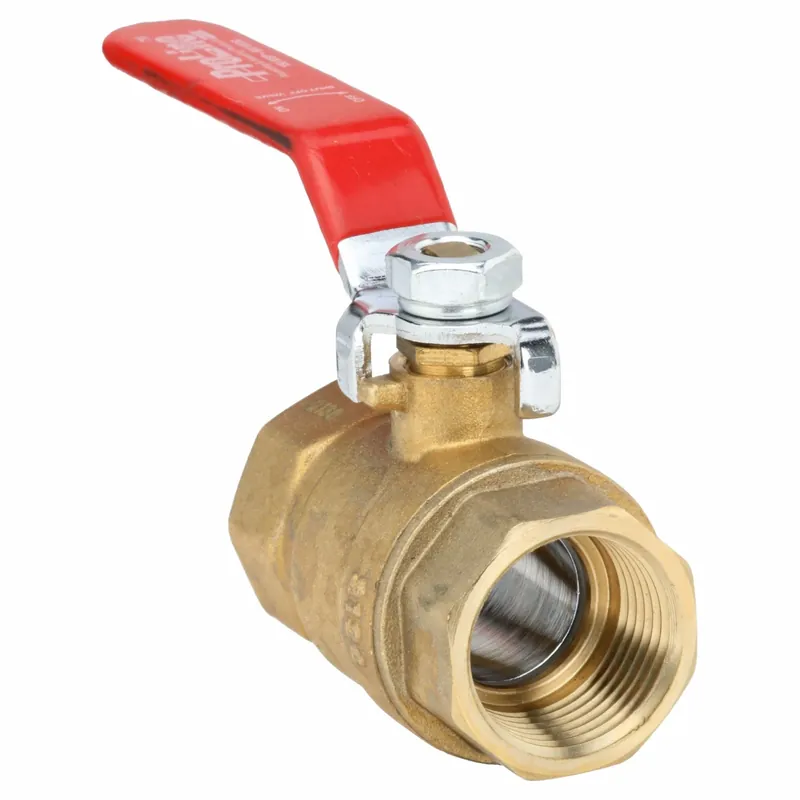

Brass ball valves have one inlet and one outlet port, are corrosion resistant and suitable for use with oil and compressed gas. They’re used in commercial and industrial applications, and they open and close with a handle.
For Media
Combustible Gases, Steam, Water
Body Material
Brass
Valve Construction
Two-Piece
Valve Body Style
Straight
Ball Port Style
Full Port
Nominal Valve Size
3/4 in
Connection Type – Side 1
IPS
Connection Gender – Side 1
Female
Connection Size – Side 1
3/4 in
Connection Type – Side 2
IPS
Connection Gender – Side 2
Female
Connection Size – Side 2
3/4 in
Max. Pressure (CWP)
600 psi
Max. Pressure (Steam)
600 psi
Standards
ASTM
Vacuum Service Rating
-29.92 in Hg
Coefficient of Volume (Cv)
21.417
Handle
Lever
Handle Material
PVC, Steel
Handle Color
Red
Ball Material
Chrome-Plated Brass
Seat Material
PTFE
Seal Material
PTFE
Stem Material
Brass
Stem Type
Blowout Resistant
Media Temp. Range
-20 °F to 300 °F
Vented Ball Valve
Non-Vented
Overall Length
4.61 in
Manufacturer Warranty
1 yr
