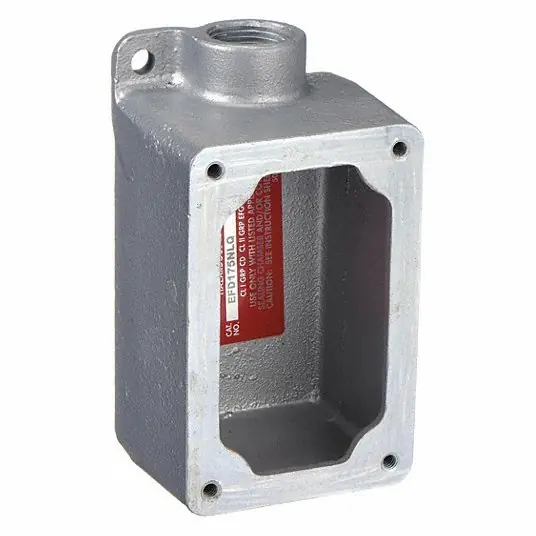

Mounting Body, Box Type 1-Gang, Number of Gangs 1, Bracket Type Lugs, Capacity Not Applicable, Material Iron, Clamp Type Clamp Not Included, Color Gray, Standards cULus Listed E10449, cULus Listed E81751, UL 1203, UL 508, UL 698
Box Type
Mounting
Number of Gangs
1 Gang
Material
Malleable Iron
Box Shape
Rectangular
Color
Gray
Hub Style
Dead-end
Standards
UL 508, UL 698, UL 1203; C22.2 No. 14-M, C22.2 No. 25, C22.2 No. 30, Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III
Includes
Internal Ground Screw
Clamp Type
Clamp Not Included
Bracket Type
Lugs
Nameplate Mounting Bracket
Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.
Modified Operation Three Position Selector Switches
Momentary contact right position, spring return to center, maintained contact left position. Momentary contact left position, spring return to center, maintained contact right position. See catalog pages for details
For Construction Type
New Construction, Remodel
Number of 3/4 in Back Knockouts
0
Number of 1/2 in Side Knockouts
0
Number of 1 in Side Knockouts
0
NEMA Enclosure Rating
3, 7CD, 9EFG
Ceiling Fan Rated
Not Rated
Number of 3/4 in Side Knockouts
0
Number of 1/2 in Back Knockouts
0
Hazardous Location Specification
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
Hub Type
Dead End
