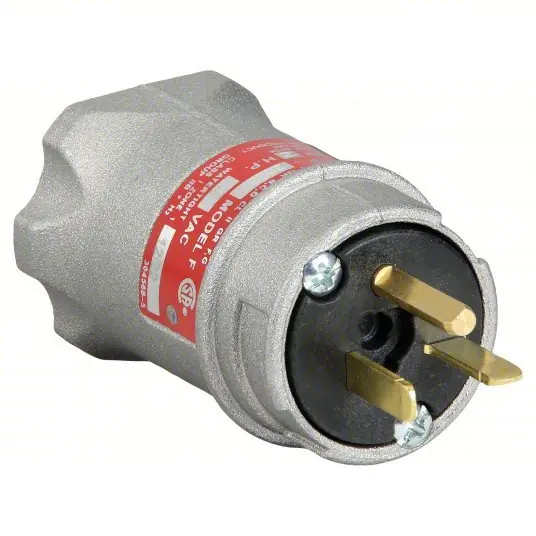

Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Gray, IP Rating Not Rated, NEMA Plug Configuration 6-20P, Number of Blades 3, Number of Poles 3, Phase Single, Polarized No, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating Not Rated, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.75 in, For Maximum Cable Diameter 0.639 in
Voltage
240V AC
NEMA Rating
3, 3R, 7BCD, 9FG
Amps
20 A
Standards
UL Listed
HP
2 hp
Number of Wires
2
Number of Poles
3
NEMA Type
6-20P
Material
Copper-Free Aluminum
Hz
60
Housing Material
Metallic
Number of Blades
3
Grounding
Grounded
Polarized
No
Blade Material
Brass
Connection Orientation
Straight
Wire Connection Type
Screw Terminals
For Environment
Hazardous Location
Resistance Properties
Corrosion Resistant
Market
Commercial
NEMA Configuration
6-20
Shrouded
No
IP Rating
Not Rated
NEMA Plug Configuration
6-20P
Horsepower Rating
2 hp
Housing Color
Gray
Grade
General Use
Current Rating
20 A
Voltage Rating
250V AC
NEMA Enclosure Rating
4
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, Class III, Div 1 and 2
Wiring Style
Standard
Phase
Single
Compatible with Series
ECCL/ECC; ECH/ECHT; ECS; N1; N2
UL 94 Flammability Rating
Not Rated
Insulation Material
Thermoplastic
