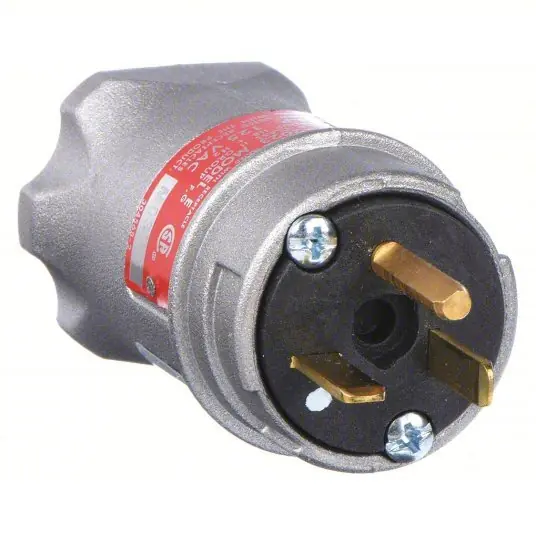

Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1 hp, Housing Color Gray, IP Rating Not Rated, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 3, Phase Single, Polarized No, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating Not Rated, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.75 in, For Maximum Cable Diameter 0.639 in
Voltage
120 V AC
NEMA Rating
3, 3R, 7BCD, 9FG
Amps
20 A
Standards
UL Listed
HP
1 hp
Number of Wires
3
Number of Poles
3
NEMA Type
5-20P
Material
Copper-Free Aluminum
Hz
60
Connection Orientation
Straight
Current Rating
20 A
NEMA Plug Configuration
5-20P
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, Class III, Div 1 and 2
Voltage Rating
125V AC
Wire Connection Type
Screw Terminals
NEMA Configuration
5-20
UL 94 Flammability Rating
Not Rated
Resistance Properties
Corrosion Resistant
Polarized
No
Blade Material
Brass
Grounding
Grounded
Market
Commercial
For Environment
Hazardous Location
NEMA Enclosure Rating
4
Housing Material
Metallic
Phase
Single
Wiring Style
Standard
Compatible with Series
ECCL/ECC; ECH/ECHT; ECS; N1; N2
Number of Blades
3
Grade
General Use
IP Rating
Not Rated
Shrouded
No
Housing Color
Gray
Horsepower Rating
1 hp
Insulation Material
Thermoplastic
