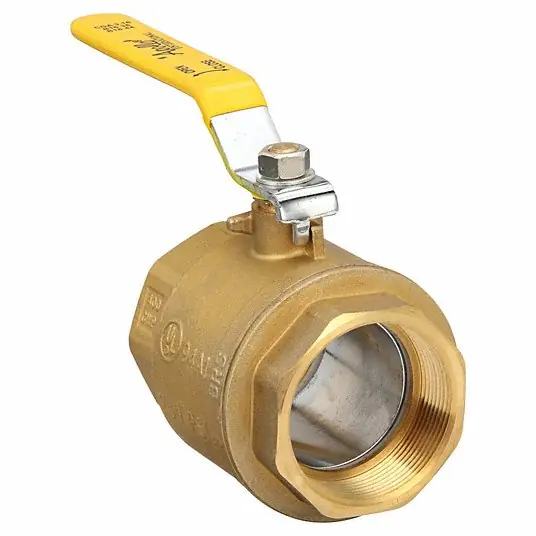

Apollo 94A10001 Manual Two-Way Ball Valve 3 in, Brass, Straight, FNPT x FNPT, 400 psi Max. Pressure (CWP)

Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Valve Construction Two-Piece, Nominal Valve Size 3 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure – Operating 400 psi, Maximum Pressure – Steam Not Rated, Maximum Pressure – Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle – Locking Non-Locking

Ball Material	Chrome Plated Brass
Body Style	Inline
Ball Port Style	Full Port
Valve Ways	2-Way
Valve Structure	Two-Piece
For Media	Combustible Gases
Connection Type	FNPT x FNPT
UPC	670750823558
Stem Type	Blowout Proof
Handle Material	Steel with Corrosion Resistant Plating
Features	General Purpose
Temp. Range	0 Degrees to 400 Degrees F
Max. Pressure	400 PSI CWP
Handle Type	Lever
Body Material	Brass
Compliance	MSS SP-110
Seat Material	PTFE
Ball Valve Product Group	Manual
Standards	CSA, FM
Stem Material	Brass
Seal Material	EPDM
Type	Two Piece
Valve Design	2-Piece
Connection Gender – Side 2	Female
Maximum Pressure – Steam	Not Rated
Connection Type – Side 1	NPT
Connection Type – Side 2	NPT
Operating Temperature – Maximum	400 Degrees F
Coefficient of Volume (Cv)	0
3-A Standard Compliance	Not Rated
Cleaned and Bagged	Not Cleaned and Bagged
Operating Temperature – Minimum	0 Degrees F
Handle – Locking	Non-Locking
Color – Valve Handle	Yellow
Maximum Pressure – Combustible Gas	Not Rated
Connection Gender – Side 1	Female
Meets UL Flammable Gas and Liquid Standards	UL 125, UL 1477, UL 842
Valve Series	94A
