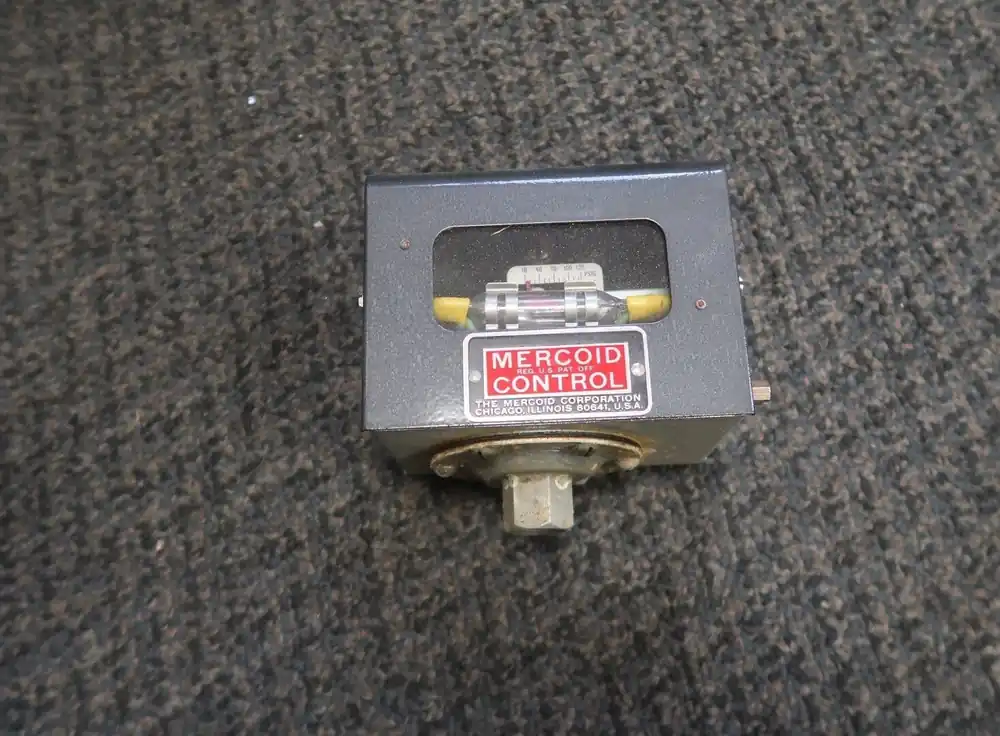

AP Diaphragm Operated Pressure Switch APD-153

Circuit Suffix Numbers: -153

Wetted Material: Nylon reinforced Buna-N and Steel. PTFE and 316 SS

Temperature Limit: -30 deg. to 150 deg. F (-35 deg to 66 deg. C)

Enclosure Rating: General Purpose, Weatherproof and explosion-proof

Switch Type: SPDT mercury switch or SPDT snap switch

Electrical Rating:

Mercury Switch: 4A @ 120 VAC/DC, 2A @ 240 VAC/DC

Snap Switch: 15A @ 120 VAC, 8A @ 240 VAC, 0.5A @ 120 VDC, 0.25A @ 240 VAC

Electrical Connection: Screw Terminal

Conduit Connection: 7/8″ (22.23 mm) hole for 1/2″ (12.7) conduit hub

Process Connection: 1/4″ female NPT

Mounting Orientation: Vertical for mercury switch models, any position for snap switch models

Set Point Adjustment: External Screw
