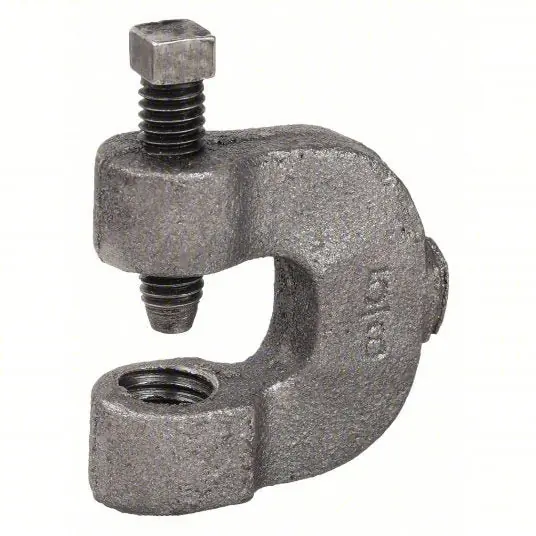

Beam Clamp, Beam Clamp Type C-Clamp, Beam Mount Location Bottom, Clamp Length 1.75 in, Clamp Material Malleable Iron, Clamp Material Finish Not Applicable, For Beam Shape/Type H-Beam, For Threaded Rod Size 3/8 in, Installation Torque 60 in-lb, Load Capacity 400 lb, Throat Depth 3/4 in, For Maximum Beam Thickness 3/4 in, Standards ANSI/MSS SP-69, Type 23, cUL Listed, A-A-1192A, Type 23, FM Approved, MSS SP-58, Type 23, UL Listed, WW-H-171-E, Type 23
Item
Beam Clamp
Sub-Category
Clamps
Material
Malleable Iron
Nominal Conduit/Pipe
3/8″
Finish
Plain
Includes
Set Screw
Type
C-Clamp
Metal Detectable
Yes
Max. Load (Lb.)
400
Standards
Federal Specification A-A-1192A (Type 23), WW-H-171-E (Type 23), ANSI/MSS SP-69, and ANSI/MSS SP-58 (Type 23). UL, ULC Listed (Sizes 3/8 in , 1/2 in , and3/4 in) and FM Approved (Sizes 3/8 in).
Description/Special Features
For Attachment to W and M Beams
For Beam Shape/Type
H-Beam
Clamp Material Finish
Not Applicable
Load Capacity
400 lb
Clamp Material
Malleable Iron
Features
Ribbed Clamp, Thread Engagement
Beam Mount Location
Bottom
For Beam Thickness
5/8 in – 3/4 in
Beam Clamp Type
C-Clamp
For Minimum Beam Thickness
5/8 in
For Maximum Beam Thickness
3/4 in
Installation Torque
60 in-lb
