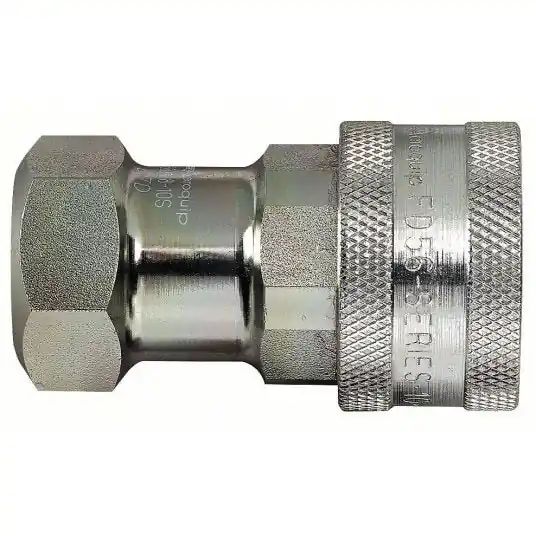

Aeroquip 5601-8-10S Hydraulic Quick Connect Hose Coupling 5/8 in Coupling Size, Steel, 45 lpm Max. Flow Rate

Aeroquip 5601-8-10S Hydraulic Quick Connect Hose Coupling 5/8 in Coupling Size, Steel, 45 lpm Max. Flow Rate

Original price was: $57.60.Current price is: $17.28.

SKU: SK0022938-US20260630-101428 Category: Tag:
Hydraulic Quick Connect Hose Coupling, Socket, 5600 Series, Steel, Coupling Size 5/8 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 45 lpm
Quick Coupler Type Hydraulic Coupler Body
Coupler Interchange Type 5600 A
Connection Type NPT
Coupler Flow Rate 12.0 gpm
Max. Pressure 4000 psi
Coupler Body Material Steel
Sleeve Material Steel
Coupler Finish Trivalent Chromium Zinc
Series 5600
Body Material Steel
Coupling Locking Type Sleeve
Seal Material Nitrile
For Use With All Hydraulic Applications
Standards ISO 7241-1 Series A
Operating Temp. Range -40 Degrees to 250 Degrees F
Seal Type Captive Valve
Locking Mechanism Ball
Shut Off double
Coupler Connection Type FNPT
Parker Interchange 6601-8-10
Hansen Interchange 4-I-26; HA-15231-00
Valve Design Poppet
Coupling Component Socket
Valve Type Poppet
Includes Bearing Yes
Max. Flow Rate 45 lpm
Weatherhead Interchange 5601-8-10S
Hose Fitting Gender Female
Safeway Interchange S565-4
Snap-Tite Interchange 61C-8-8; 61C8-8F
Pull Ring Material PTFE
Fitting Type FNPT
Finish/Coating Trivalent Chromium Zinc
Includes Shut Off Yes
Includes Valve Yes
Maximum Vacuum 28 in Hg
Max. Working Pressure @ 70 F 4,000 psi
