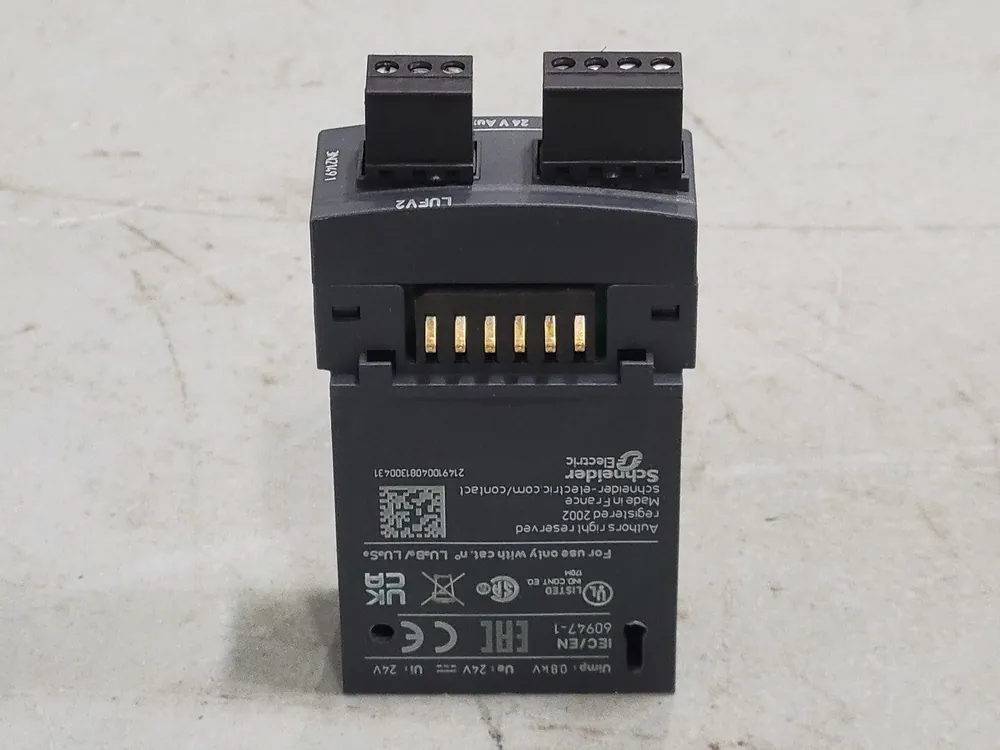

4-20mA Function Module, Indication of Motor Load LUFV2

Main Details

Range: TeSys

Device short name: LUF

Product or Component Type: Function module

Product Compatibility: LUCC, LUCM, LUCB, LUCD

Complementary Details

Mounting Mode: Plug-in

Mounting Location: Front side

Main function available: Indication of motor load

[Us] rated supply voltage: 24 V DC

Analogue output current: 4..20 mA

Type of output signal: Value of I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD; Value of I average/Ir ratio within the range of 0 to 3 for LUCC

Load impedance ohmic: 100 Ohm typical; <= 500 Ohm

Measurement accuracy: +/- 10 % with multifunction control unit 1 % of Ir

+/- 6 % with advanced control unit
