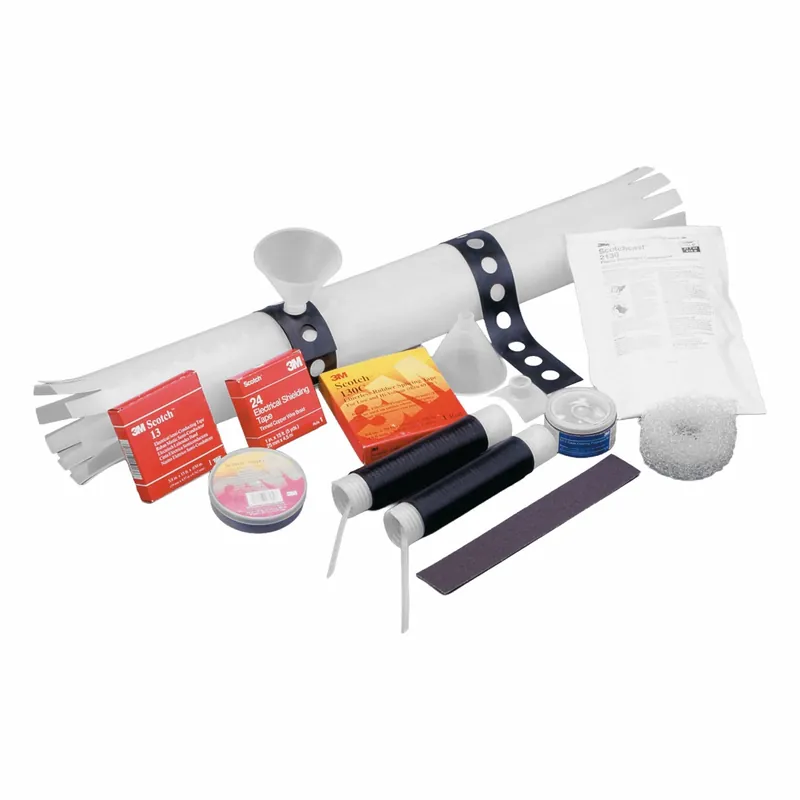

Cold shrink splice kits contain combinations of items that help users protect spliced connections using cold shrink sleeves. These sleeves start stretched over a temporary tube placed around the wires to be joined and pulled out, while the shrink sleeve remains. This 3M kit splices 15 kV power cable with conductors from 4 AWG to 3/0 AWG and includes funnels, spacer webs, EPDM rubber cold-shrink insulator assemblies, Scotchcast flame-retardant compound, and a full set of Scotch electrical tapes.
Color
Black
Maximum Voltage
15 kV
Minimum Wire Size
4 AWG
Maximum Wire Size
3/0 AWG
Maximum Conductors
3
For Conductor Material
Aluminum; Copper
For Conductor Type
MPF MPF-GC SHD-GC
Compatible with Product Type
Draglines; Drills; Power Shovels; Type MPF Underground Power Feeder Cables
Maximum Cable Outside Diameter
4 in
Insulation Material
Rubber
Material
EPDM Rubber
Direct Burial Rated
No
Number of Pieces
1
Standards
RoHS 2011/65/EU
Country of Origin
United States
