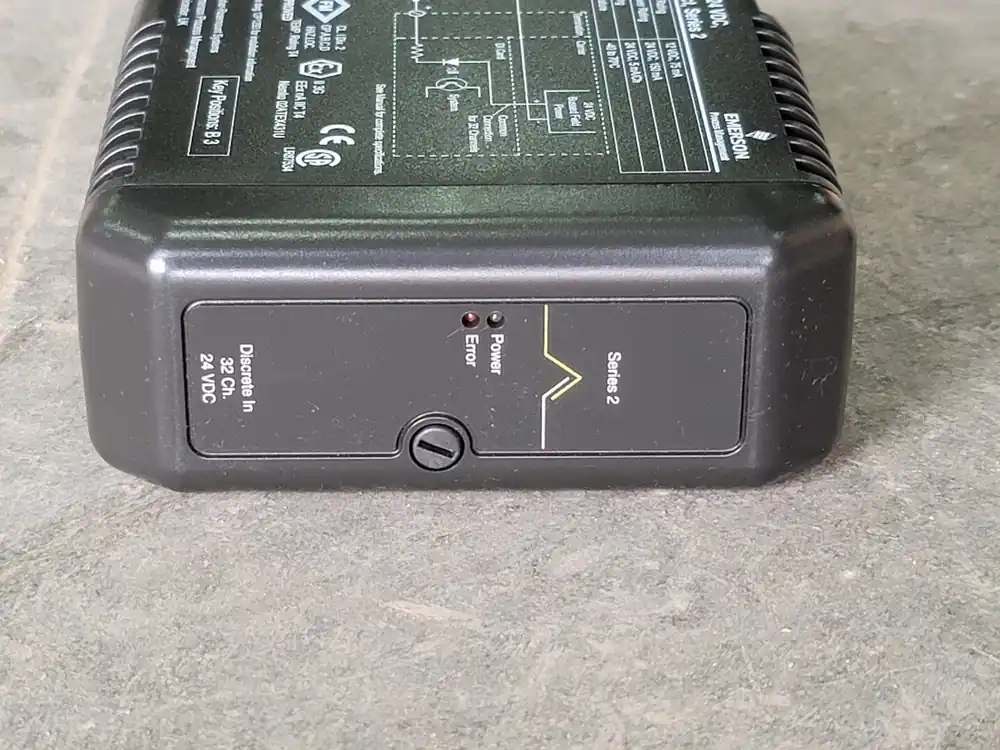

32-Channel Digital Input Module KJ3203X1-BA1 w/ Terminal Block

Series: 2

Number of Channels: 32

Power Specifications:-

Local Bus Power: 12 VDC @ 75 mA

Bussed Field Power: 24 VDC @ 150 mA

Field Circuit Power: 24 VDC @ 5 mA/ channel

Environmental Specifications:-

Ambient Temperature: -40 deg. C to 70 deg. C

Shock: 10g 1/2 Sinewave for 11 msec

Vibration: 1mm Peak to Peak from 2 to 13.2 Hz, 0.7g from 13.2 to 150 Hz

Airborne Contaminants: ISA-S71.04-1985 Class G3

Relative Humidity: 5 to 95% Non-Condensing

IP Rating: IP 20

Terminal Block Key Position: B3
