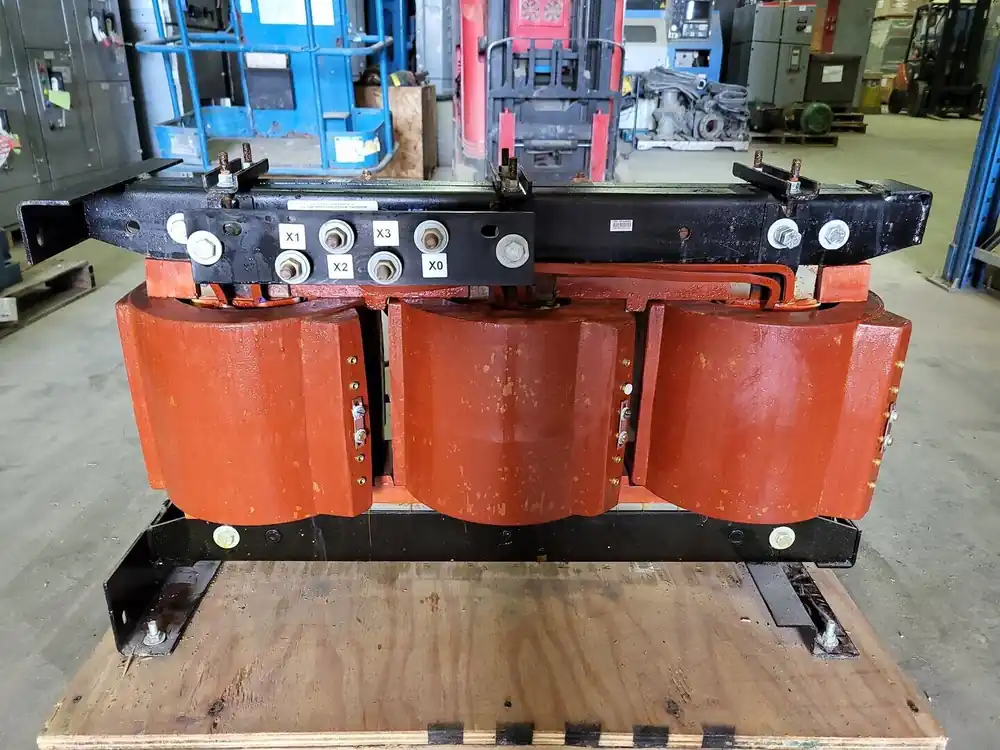

30 kVA Transformer, 13800 Delta pri. volts, 208Y/120 sec. volts 3CPT5-95-30-1382
Original price was: $2,228.00.$298.98Current price is: $298.98.
| Specifications | |
|---|---|
| Model | 3CPT5-95-30-1382B |
| S/N: | 53349065 |
| Made In | UNITED STATES |
| Condition | Surplus New | Electrical |
| kVA | 30 kVA |
| Primary Voltage | 13800 volts |
| Secondary Voltage | 208/120 volts |
| Phase | 3-phase | General |
| Transformer Type | Power Transformer |
| Auto VS Isolation | Isolation |
| Oil vs Dry | Dry |
| Other Specifications |
|---|
|
Frequency: 60 Hz Insulation Level: 15 kV, 95 kV BIL full wave Thermal Rating: 30 kVA at 30oC ambient. 25.7 kVA at 55oC ambient. 80oC rise. 45 kVA at 30oC ambient. 38.6 kVA at 55oC ambient, 80oC rise. Primary terminals are copper compression type lugs. Secondary terminals are brass studs 1/2- 13 with one flatwasher, lockwasher and two regular nuts. Windings are encapsulated in epoxy resin. Mounting base is steel. Assembly is varnish coated. Supplied with taps on primary side: Cat. suffix A (1 ) + 7 1/ 2% taps or Cat. suffix B (2 ) + 2 1/ 2% taps |
