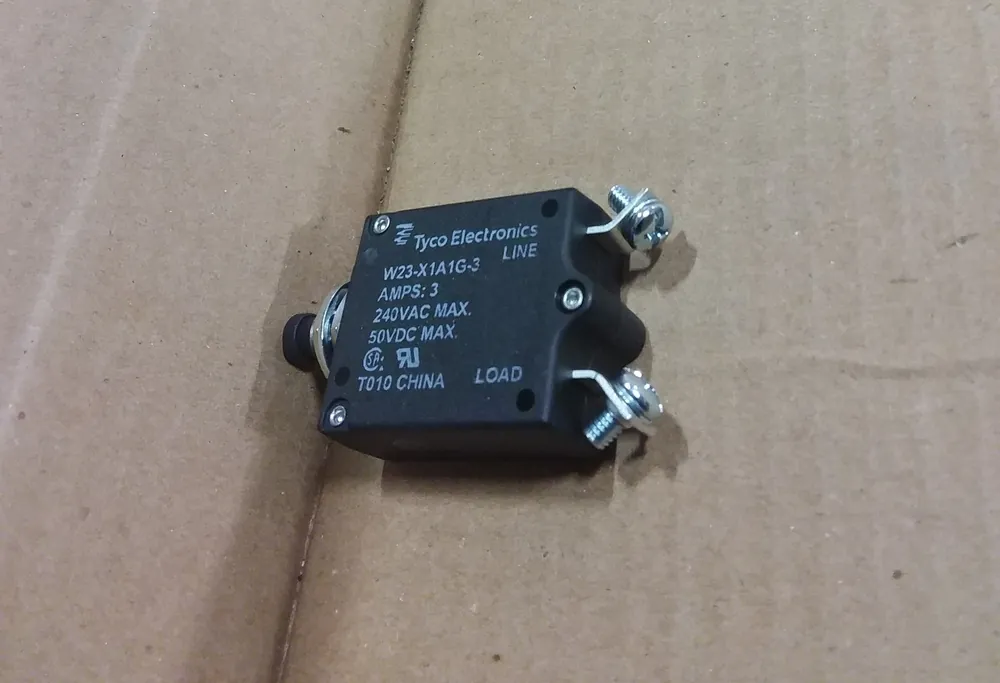

3 Amp, 1 Pole, 240 volts Thermal Circuit Breaker W23-X1A1G-3
Original price was: $18.00.$5.40Current price is: $5.40.
| Specifications | |
|---|---|
| Model | W23-X1A1G-3 |
| Condition | Surplus New | General |
| Amps | 3 amps |
| # of Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|
Designator (W): Circuit Breaker Series Number (23): Single Pole, Push/Pull Circuit Function (X): Series Trip Button (1): Black with white amp rate marking and white trip band Mounting Bushing (A): 3/8″-24 threaded bushing 0.375″ (9.53mm) long, silver color Terminals (1): Screw terminals situtaed 90 deg. to each other with #8-32 screws and washers installed Mounting Hardware (G): Two hex nuts/lock washer installed Amp. Rating (5): 3 A |
Be the first to review “3 Amp, 1 Pole, 240 volts Thermal Circuit Breaker W23-X1A1G-3”
