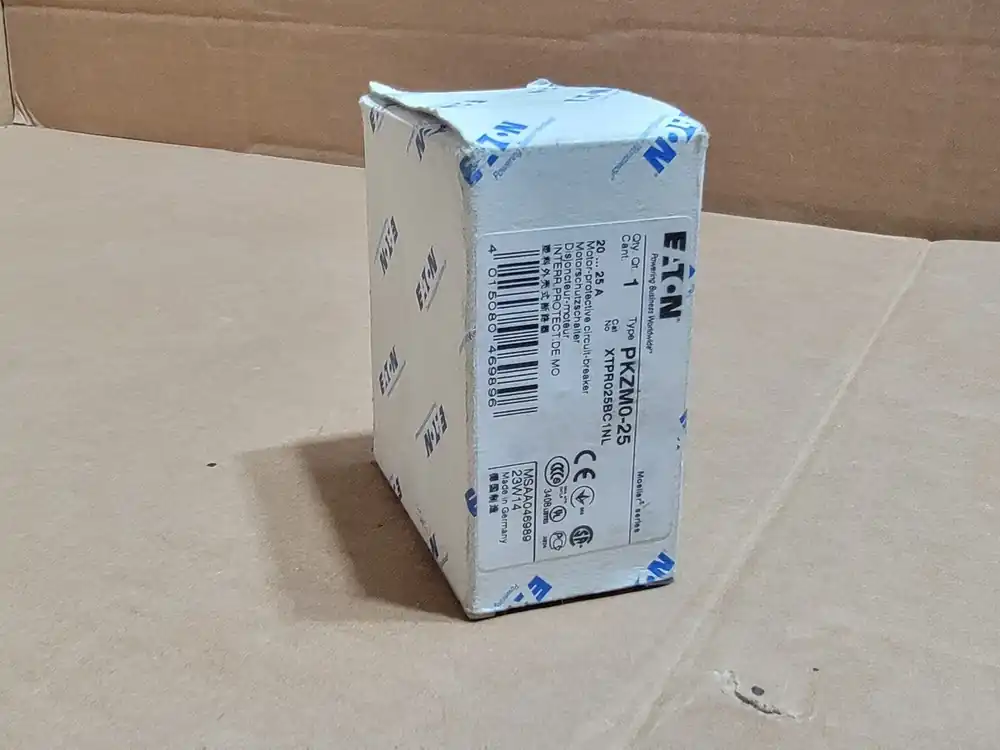

25 Amp, 3 Pole, 600 Volts Motor Circuit Breaker PKZM0-25

Overview:

Product type: Motor protection circuit breaker (manual motor starter)

Rated current (adjustable): 20 – 25 A

Number of poles: 3-pole

Rated operational voltage: Up to 690 V AC (600 V AC compatible)

Tripping mechanism: Thermal-magnetic (overload and short-circuit protection)

Phase failure sensitivity: Yes

Motor power rating (AC-3): approx. 5.5 kW @ 230 V, 12.5 kW @ 400 V, 15 kW @ 500 V, 22 kW @ 690 V

Mounting: DIN rail (IEC/EN 60715)

Connection type: Screw terminals

Protection rating: IP20

Standards and approvals: IEC/EN 60947-4-1, UL, CSA, CE

Application: Motor protection and manual switching in industrial control systems
