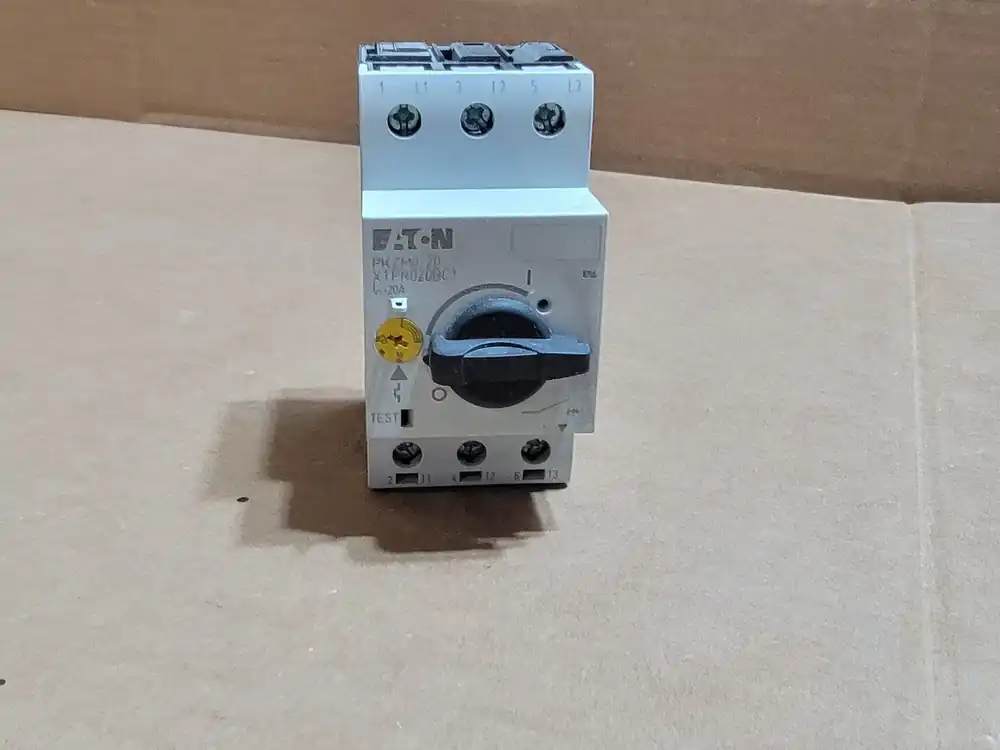

The Eaton PKZM0-20 is a 3-pole manual motor protection circuit breaker designed for reliable overload and short-circuit protection of three-phase motors. It features an adjustable current range of 16-20 A, thermal-magnetic trip, DIN-rail mounting, and screw terminals. Rated up to 690 V AC, it is suitable for 600 V industrial applications.
Specifications
Model
PKZM0-20
Year:
2010
Condition
Surplus New
General
Amps
20 amps
Series
PKZM0
# of Poles
3
Voltage
600 volts
Phase
3-phase
AFCI
No
GFCI
No
Other Specifications
Overview:
Model: Eaton PKZM0-20
Type: Motor protection circuit breaker / manual motor starter
Rated current: 20 A (adjustable 16-20 A)
Poles: 3
Voltage rating: Up to 690 V AC (suitable for 600 V)
Trip type: Thermal-magnetic (overload and short-circuit protection)
Phase failure sensitive: Yes
Motor power (AC-3): approx. 5.5 kW @ 230 V, 9 kW @ 400 V, 12.5 kW @ 500 V, 15 kW @ 690 V
Connection: Screw terminals
Mounting: DIN rail (IEC/EN 60715)
Protection rating: IP20
Approvals and standards: IEC/EN 60947-4-1, UL, CSA, CE
Application: Motor overload and short-circuit protection in industrial control panels
